1N6292A-E3/51
lmages are for reference only.1N6292A-E3/51
TVS DIODE 64.1VWM 104VC 1.5KE
DatasheetDO-201AA, DO-27, Axial
58,569 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
104V Clamp 14.6A Ipp Tvs Diode Through Hole 1.5KE
1N6292A-E3/51
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | TransZorb® |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 64.1V |
| Voltage - Breakdown (Min) | 71.3V |
| Voltage - Clamping (Max) @ Ipp | 104V |
| Current - Peak Pulse (10/1000µs) | 14.6A |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | DO-201AA, DO-27, Axial |
| Supplier Device Package | 1.5KE |
| Base Product Number | 1N6292 |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |

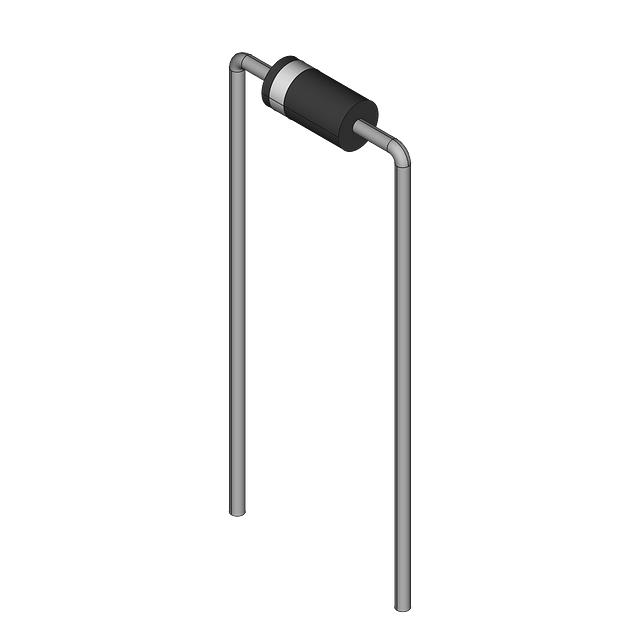

| Part Number | 1N6292A-E3/54 | 1N6292A-E3/73 | 1N6292A | 1N6292AG |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | onsemi | onsemi |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | TVS DIODE 64.1VWM 104VC 1.5KE | TVS DIODE 64.1VWM 104VC 1.5KE | TVS DIODE 64.1VWM 103VC AXIAL | TVS DIODE 64.1VWM 103VC AXIAL |
| Series | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | onsemi | onsemi |
| Packaging | Tape & Reel (TR) | Tape & Box (TB) | Bulk | Bulk |
