1SMA5940

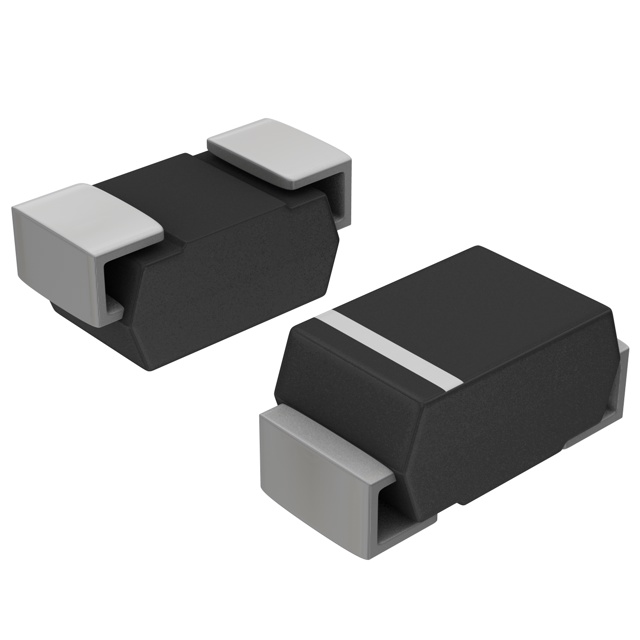

lmages are for reference only.1SMA5940
DIODE ZENER 43V 1.5W DO214AC
DatasheetDO-214AC, SMA
92,779 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Zener Diode 43 V 1.5 W ±5% Surface Mount DO-214AC (SMA)
1SMA5940
| Category | Discrete Semiconductor Products - Diodes - Zener |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Voltage - Zener (Nom) (Vz) | 43 V |
| Tolerance | ±5% |
| Power - Max | 1.5 W |
| Impedance (Max) (Zzt) | 53 Ohms |
| Current - Reverse Leakage @ Vr | 500 nA @ 32.7 V |
| Voltage - Forward (Vf) (Max) @ If | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | DO-214AC (SMA) |
| Base Product Number | 1SMA5940 |
| Product Attribute |  |
 |
 |
 |
| Part Number | 1SMA5940 R3G | 1SMA5940-AU_R2_000A1 | 1SMA5940BT3 | 1SMA5940BT3G |
| Manufacturer | Taiwan Semiconductor Corporation | Panjit International Inc. | onsemi | onsemi |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | DIODE ZENER 43V 1.5W DO214AC | DIODE ZENER 43V 1.5W DO214AC | DIODE ZENER 43V 1.5W SMA | DIODE ZENER 43V 1.5W SMA |
| Series | - | - | 1SMA59xxBT3G | 1SMA59xxBT3G |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
