1SMB5.0A BK PBFREE

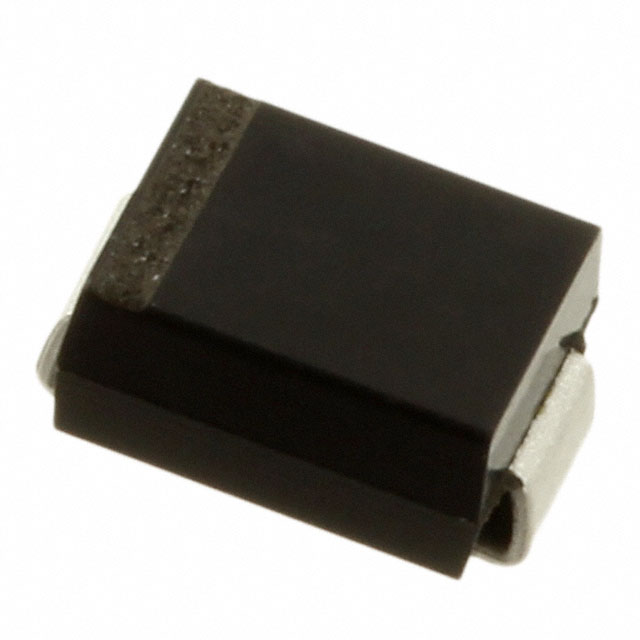

lmages are for reference only.1SMB5.0A BK PBFREE
TVS DIODE 5VWM 9.2VC SMB
DatasheetDO-214AA, SMB
10,236 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
9.2V Clamp 65.2A Ipp Tvs Diode Surface Mount SMB
1SMB5.0A BK PBFREE
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Central Semiconductor Corp |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 5V |
| Voltage - Breakdown (Min) | 6.4V |
| Voltage - Clamping (Max) @ Ipp | 9.2V |
| Current - Peak Pulse (10/1000µs) | 65.2A |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | SMB |
| Base Product Number | - |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
|

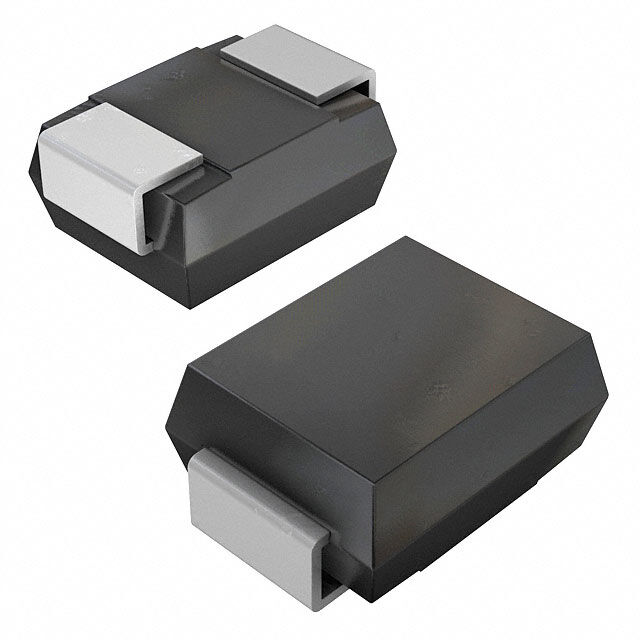

| Part Number | 1SMB5.0A TR13 PBFREE | 1SMB5.0AT3 | 1SMB5.0AT3G | 1SMA10AT3 |
| Manufacturer | Central Semiconductor Corp | onsemi | Littelfuse Inc. | onsemi |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | TVS DIODE 5VWM 9.2VC SMB | TVS DIODE 5V 9.2V SMB | TVS DIODE 5VWM 9.2VC SMB | TVS 400W 10V UNIDIRECT SMA |
| Series | Central Semiconductor Corp | onsemi | Littelfuse Inc. | onsemi |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
