1SMC78A TR13

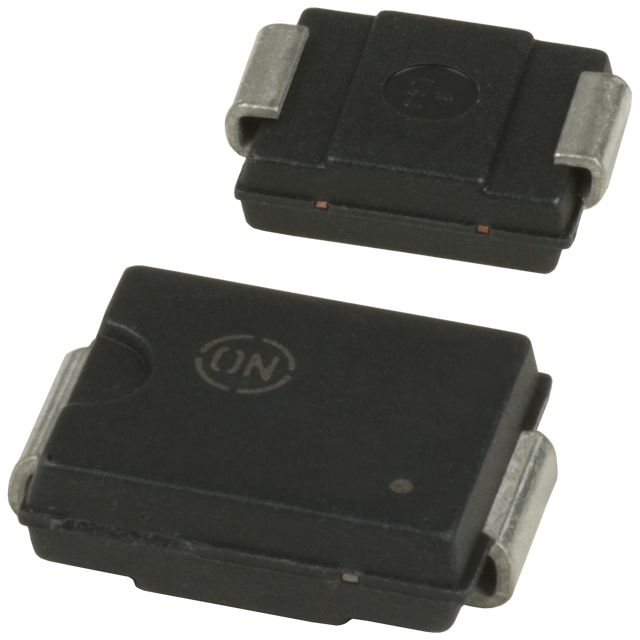

lmages are for reference only.1SMC78A TR13
TVS DIODE 78VWM 126VC SMC
DatasheetDO-214AB, SMC
38,573 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
126V Clamp 11.4A Ipp Tvs Diode Surface Mount SMC
1SMC78A TR13
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Central Semiconductor Corp |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS non-compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 78V |
| Voltage - Breakdown (Min) | 86.7V |
| Voltage - Clamping (Max) @ Ipp | 126V |
| Current - Peak Pulse (10/1000µs) | 11.4A |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | SMC |
| Base Product Number | - |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |
| Part Number | 1SMC78AT3 | 1SMC78AT3G | 1SMC78AT3G | 1SMC78CA TR13 PBFREE |
| Manufacturer | onsemi | onsemi | Littelfuse Inc. | Central Semiconductor Corp |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 78VWM 126VC SMC | TVS DIODE 78VWM 126VC SMC | TVS DIODE 78VWM 126VC SMC | TVS DIODE 78VWM 126VC SMC |
| Series | onsemi | onsemi | Littelfuse Inc. | Central Semiconductor Corp |
| Packaging | Tape & Reel (TR) | Bulk | Tape & Reel (TR) | Tape & Reel (TR) |
