2-1393819-5
lmages are for reference only.2-1393819-5
RELAY GENERAL PURPOSE 200MA 48V
Datasheet-
77,287 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay Socketable
2-1393819-5
| Category | Relays - Signal Relays-Up to 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | V23162, AXICOM |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Socketable |
| Coil Voltage | 48VDC |
| Contact Form | - |
| Contact Rating (Current) | 200 mA |
| Switching Voltage | 30VAC, 36VDC - Max |
| Load - Max Switching | - |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Plug In |
| Seal Rating | Sealed - Hermetically |
| Coil Insulation | - |
| Must Operate Voltage | - |
| Must Release Voltage | - |
| Operate Time | 7.5 ms |
| Release Time | 3 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver (Ag), Gold (Au) |
| Approval Agency | - |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Base Product Number | 1393819 |
| Coil Current | 15 mA |
| Coil Resistance | 3.2 kOhms |
| Product Attribute | |
|
|
|

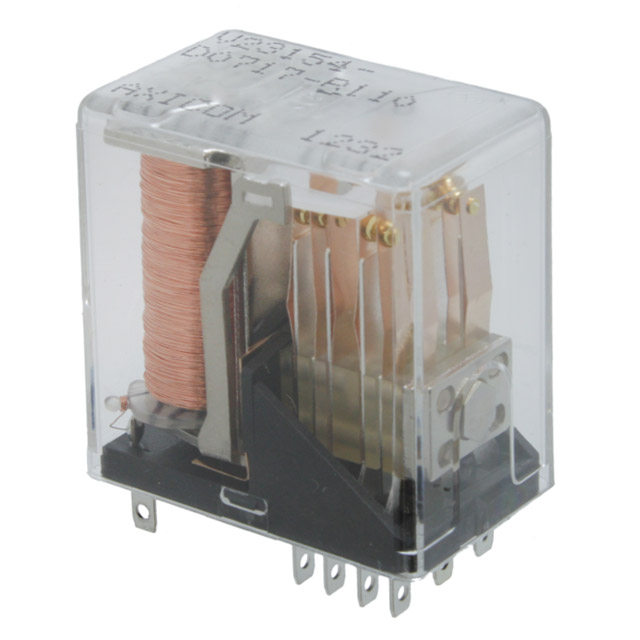

| Part Number | 2-1393810-0 | 2-1393810-1 | 2-1393810-2 | 2-1393810-3 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | Not applicable | ROHS3 Compliant | ROHS3 Compliant | Not applicable |
| Description | RELAY GEN PURPOSE DPDT 2A 10V | RELAY GEN PURPOSE DPDT 2A 12V | RELAY GEN PURPOSE DPDT 2A 12V | RELAY GEN PURPOSE DPDT 2A 15V |
| Series | V23154, AXICOM | V23154, AXICOM | V23154, AXICOM | V23154, AXICOM |
| Packaging | Bulk | Bulk | Bulk | Bulk |
