2-435469-1
lmages are for reference only.2-435469-1
SW TOGGLE DIP DPST 0.025A 24V
Datasheet-
51,846 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Dip Switch DPST 1 Position Through Hole Toggle Actuator 25mA 24VDC
2-435469-1
| Category | Switches - DIP Switches - |
| Manufacturer | TE Connectivity ALCOSWITCH Switches |
| Series | 7000 |
| Packaging | Tube |
| RoHS Status | RoHS non-compliant |
| Circuit | DPST |
| Number of Positions | 1 |
| Current Rating (Amps) | 25mA |
| Voltage Rating | 24VDC |
| Actuator Type | Toggle |
| Actuator Level | Raised |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Height Above Board | 0.460" (11.68mm) |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Pitch | 0.100" (2.54mm), Full |
| Washable | No |
| Features | - |
| Operating Temperature | -55°C ~ 105°C |
| Body Material | Polyester (PET), Glass Filled |
| Length | 0.280" (7.11mm) |
| Mechanical Life | 7,000 Cycles |
| Electrical Life | 7,000 Cycles |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

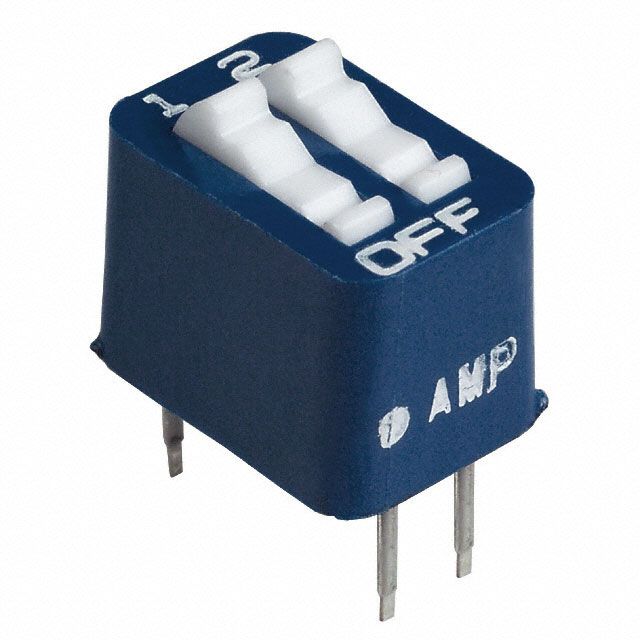

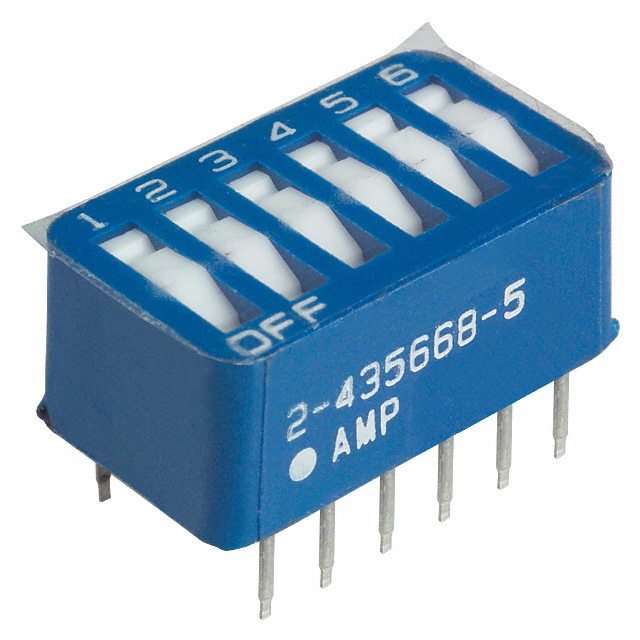

| Part Number | 2-435166-9 | 2-435640-9 | 2-435668-5 | 2-435668-6 |
| Manufacturer | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | SWITCH ROCKER DIP SPST | SWITCH ROCKER DIP SPST 0.06A 5V | SWITCH ROCKER DIP SPST 0.06A 5V | SWITCH ROCKER DIP SPST 0.06A 5V |
| Series | 7000 | 7100 | 7100 | 7100 |
| Packaging | Tube | Tube | Bulk | Bulk |
