20 CMH2O-D1-4V-MINI

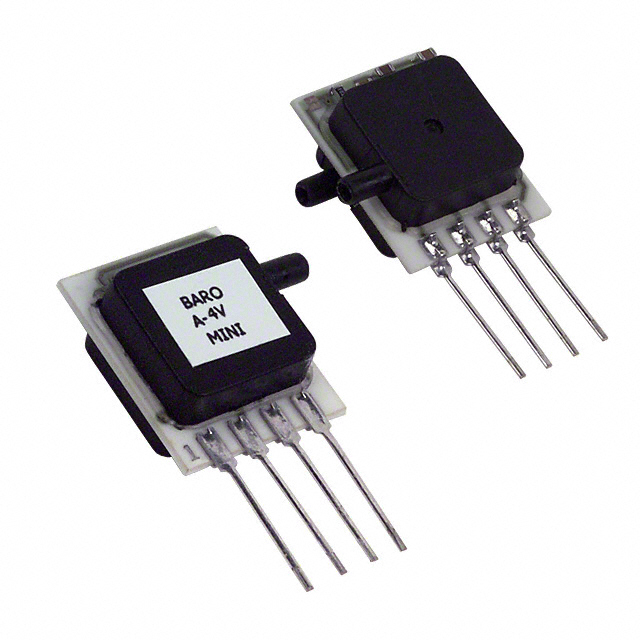

lmages are for reference only.20 CMH2O-D1-4V-MINI
SENSOR 0.28PSID 0.08" 4.5V
Datasheet4-SIP Module
14,551 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor -0.003PSI ~ 0.28PSI (-0.02kPa ~ 1.96kPa) Differential Male - 0.08" (2.00mm) Tube, Dual 0.3 V ~ 4.5 V 4-SIP Module
20 CMH2O-D1-4V-MINI
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Amphenol All Sensors Corporation |
| Series | MAMP |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Base Product Number | D1-4V-MINI |
| Applications | Board Mount |
| Pressure Type | Differential |
| Operating Pressure | -0.003PSI ~ 0.28PSI (-0.02kPa ~ 1.96kPa) |
| Output Type | Analog Voltage |
| Output | 0.3 V ~ 4.5 V |
| Accuracy | ±0.25% |
| Voltage - Supply | 4.5V ~ 5.5V |
| Port Size | Male - 0.08" (2.00mm) Tube, Dual |
| Port Style | Barbless |
| Features | Amplified Output, Temperature Compensated |
| Termination Style | PC Pin |
| Maximum Pressure | 1.42PSI (9.79kPa) |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP Module |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |
| Part Number | 20 CMH2O-D1-P4V-MINI | ABPLLNN001BG2D3 | ABPLNNN001PG4A3 | DC005NDC4 |
| Manufacturer | Amphenol All Sensors Corporation | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | ||
| Description | SENSOR 0.28PSID 0.08" 4.5V | BASIC PRESSURE SENSOR | PRESSURE SENSOR ABP SERIES | SENSOR 0.18PSID 0.19" 4.25V |
| Series | MAMP | * | * | DC |
| Packaging | Tube | Bulk | Tray | Tube |
