Product CatalogPart Number
20310200102
Manufacturer
HARTINGDescription
SENSOR CURRENT HALL 200A AC
Datasheet
DatasheetPackage
Module, Single Pass Through
In Stock
109,606 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
20310200102
20310200102
lmages are for reference only.Payment Methods
Delivery Services
Current Sensor 200A 1 Channel Hall Effect, Closed Loop Bidirectional Module, Single Pass Through
Quick Inquiry
20310200102
Specifications
| Category | Sensors, Transducers - Current Sensors - |
| Manufacturer | HARTING |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| For Measuring | AC/DC |
| Sensor Type | Hall Effect, Closed Loop |
| Current - Sensing | 200A |
| Number of Channels | 1 |
| Output | Ratiometric, Voltage |
| Sensitivity | - |
| Frequency | 100kHz |
| Linearity | ±0.1% |
| Accuracy | ±0.8% |
| Voltage - Supply | 12V ~ 15V |
| Response Time | 1µs |
| Current - Supply (Max) | 20mA |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bidirectional |
| Mounting Type | Panel Mount |
| Package / Case | Module, Single Pass Through |
| Supplier Device Package | - |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

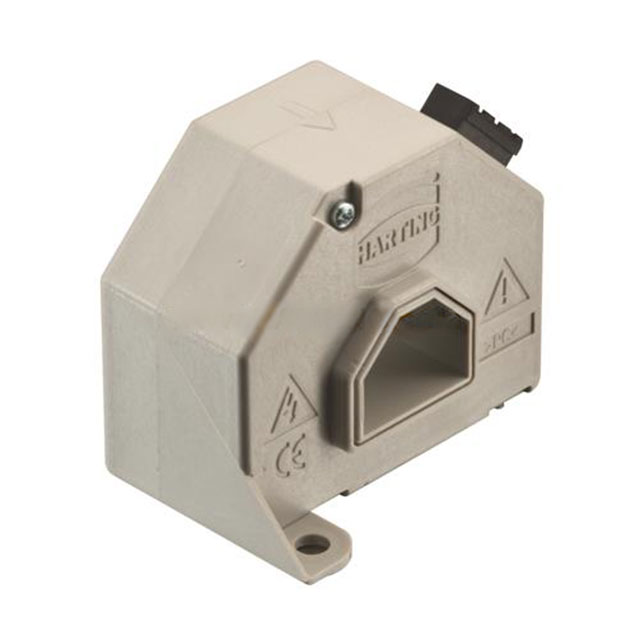

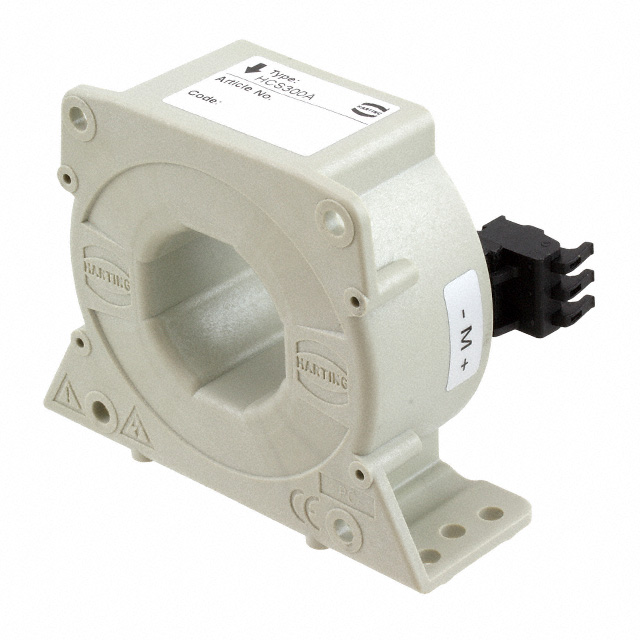

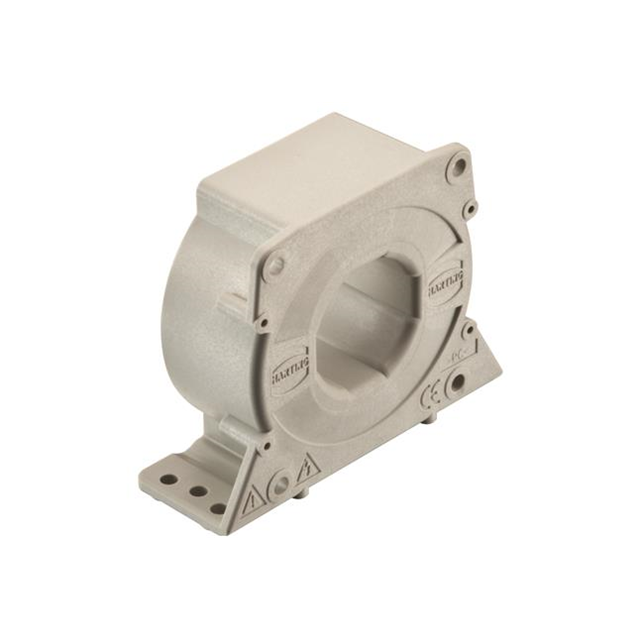

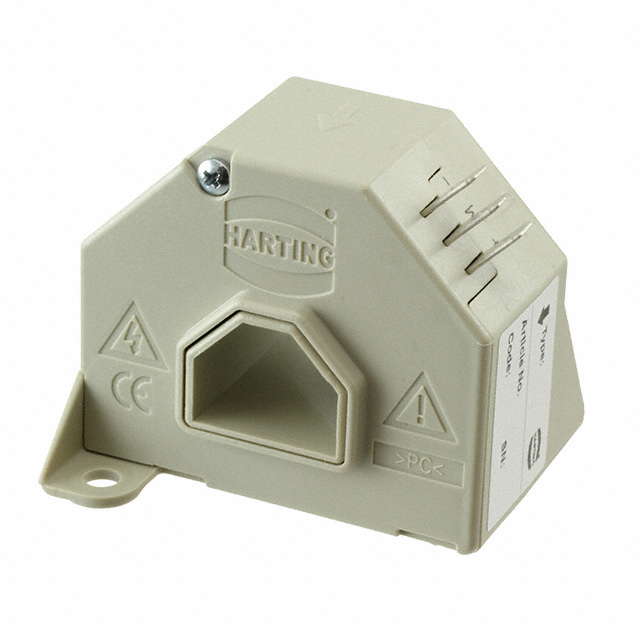

| Part Number | 20310200101 | 20310200202 | 20310300101 | 20310300201 |
| Manufacturer | HARTING | HARTING | HARTING | HARTING |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SENSOR CURRENT HALL 200A AC | CURRENT SENSOR 200A WITH CLAMP T | SENSOR CURRENT HALL 300A AC | CURRENT SENSOR 300A WITH CLAMP T |
| Series | HARTING | HARTING | HARTING | HARTING |
| Packaging | Bulk | Bulk | Bulk | Bulk |
