Product CatalogPart Number
20682-040E-02
Manufacturer
I-PEXDescription
CABLINE-CA II RECEPTACLE 40P
Datasheet
DatasheetPackage
-
In Stock
63,905 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
20682-040E-02
20682-040E-02
lmages are for reference only.Payment Methods
Delivery Services
40 Position Receptacle Connector Surface Mount, Right Angle Gold
Quick Inquiry
20682-040E-02
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Receptacles-Female Sockets |
| Manufacturer | I-PEX |
| Series | CABLINE®-CA II |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Receptacle |
| Contact Type | - |
| Style | Board to Cable/Wire |
| Number of Positions | 40 |
| Number of Positions Loaded | 40 |
| Pitch - Mating | - |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Insulation Color | - |
| Insulation Height | - |
| Contact Length - Post | - |
| Operating Temperature | -40°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | - |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Shielded, Solder Retention |
| Current Rating (Amps) | - |
| Voltage Rating | 100V |
| Applications | General Purpose, Telecommunications |
| Insulation Material | - |
| Contact Shape | - |
| Contact Material | Phosphor Bronze |
| Contact Finish Thickness - Post | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

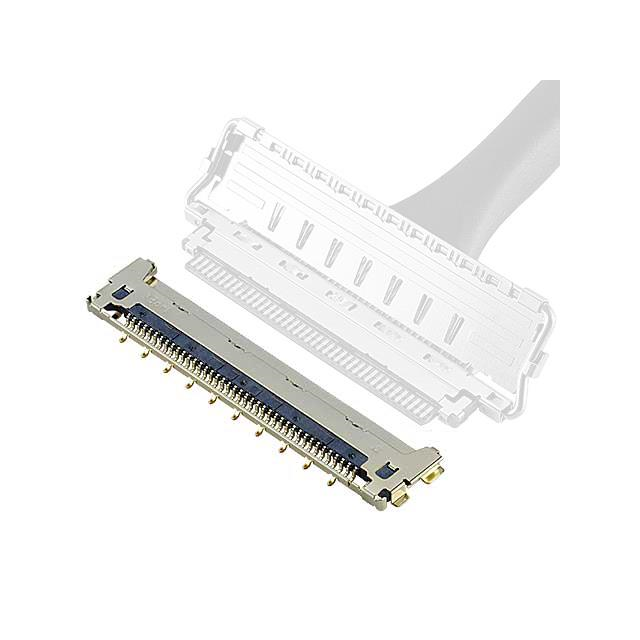

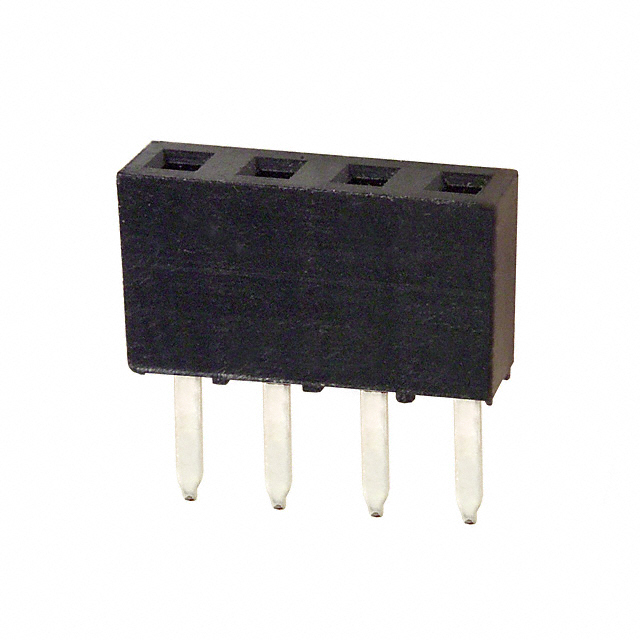

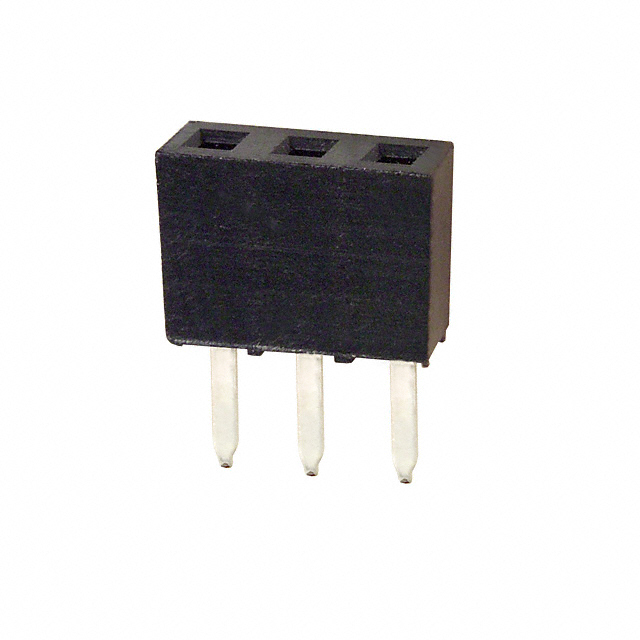

| Part Number | 20682-030E-02 | 2063-03-01-P2 | 2063-03-01RP2 | 2063-04-01-P2 |
| Manufacturer | I-PEX | NorComp Inc. | NorComp Inc. | NorComp Inc. |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | CABLINE-CA II RECEPTACLE 30P | CONN RCPT 3POS 0.079 GOLD PCB | CONN RCPT 3POS 0.079 GOLD PCB | CONN RCPT 4POS 0.079 GOLD PCB |
| Series | I-PEX | NorComp Inc. | NorComp Inc. | NorComp Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Bulk | Bulk |
