20SVPB22M
lmages are for reference only.20SVPB22M
CAP ALUM POLY 22UF 20% 20V SMD
DatasheetRadial, Can - SMD
75,050 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
22 µF 20 V Aluminum - Polymer Capacitors Radial, Can - SMD 35mOhm 1000 Hrs @ 105°C
20SVPB22M
| Category | Capacitors - Aluminum Polymer Capacitors - |
| Manufacturer | Panasonic Electronic Components |
| Series | OS-CON™, SVPB |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Polymer |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 20 V |
| ESR (Equivalent Series Resistance) | 35mOhm |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 100 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2 A @ 100 kHz |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Base Product Number | 20SVPB |
| Features | - |
| Impedance | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | 20SVPB15M | 20SEF120M | 20SEF180M | 20SEF390M |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

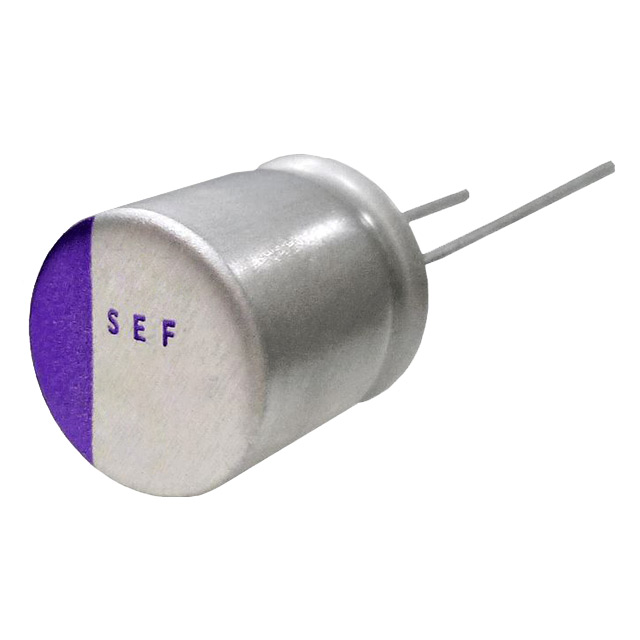

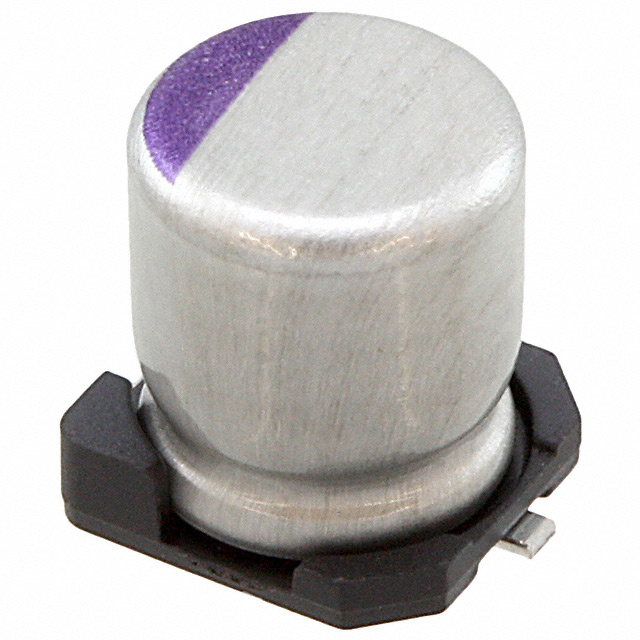

| Description | CAP ALUM POLY 15UF 20% 20V SMD | CAP ALUM POLY 120UF 20% 20V TH | CAP ALUM POLY 180UF 20% 20V TH | CAP ALUM POLY 390UF 20% 20V TH |
| Series | OS-CON™, SVPB | OS-CON™, SEF | OS-CON™, SEF | OS-CON™, SEF |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Bulk | Bulk |
