22R155C
lmages are for reference only.22R155C
FIXED IND 1.5MH 130MA 6.49OHM TH
DatasheetRadial, Vertical Cylinder
31,761 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1.5 mH Unshielded Wirewound Inductor 130 mA 6.49Ohm Max Radial, Vertical Cylinder
22R155C
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Murata Power Solutions Inc. |
| Series | 2200R |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 1.5 mH |
| Tolerance | ±10% |
| Current Rating (Amps) | 130 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 6.49Ohm Max |
| Q @ Freq | 130 @ 100kHz |
| Frequency - Self Resonant | 1.9MHz |
| Ratings | - |
| Operating Temperature | -25°C ~ 70°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.256" Dia (6.50mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Base Product Number | 22R |
| Product Attribute |  |
 |
 |
 |
| Part Number | 22R155MC | 22R103C | 22R103MC | 22R104C |
| Manufacturer | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

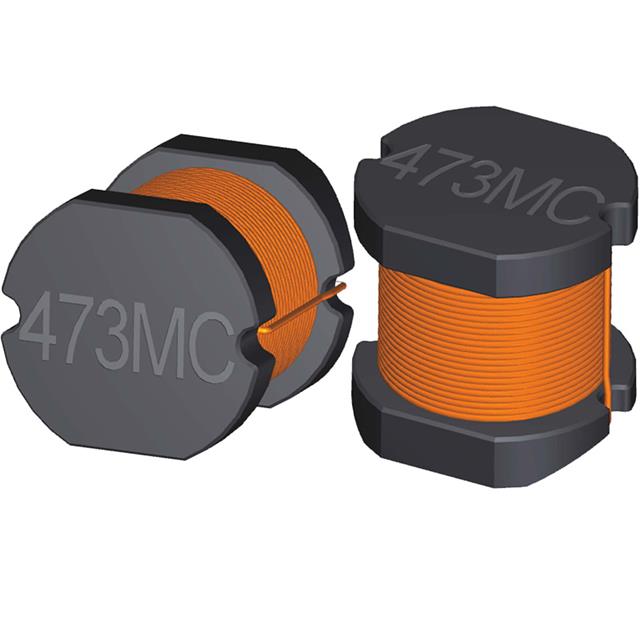

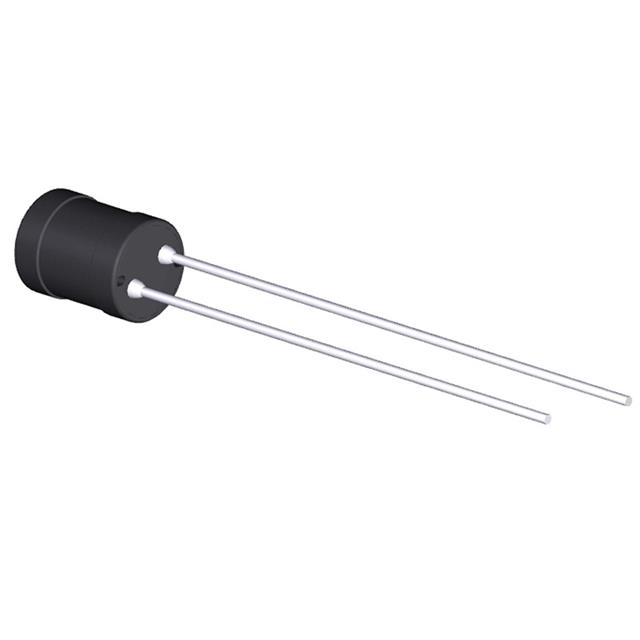

| Description | FIXED IND 1.5MH 160MA 6.49OHM SM | FIXED IND 10UH 1.62A 50 MOHM TH | FIXED IND 10UH 2.52A 50 MOHM SMD | FIXED IND 100UH 670MA 390MOHM TH |
| Series | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
