2300HT-1R2-H-RC
lmages are for reference only.2300HT-1R2-H-RC
FIXED IND 1.2UH 38.7A 2 MOHM TH
DatasheetRadial, Horizontal (Open)
22,338 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services

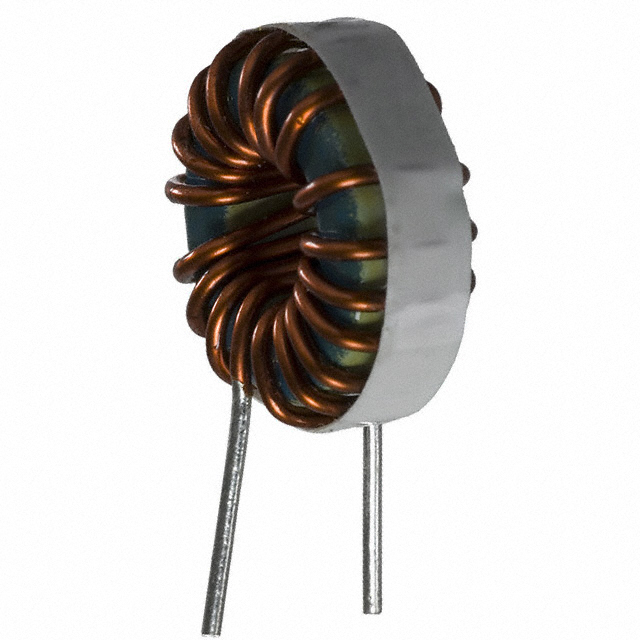

1.2 µH Shielded Toroidal Inductor 38.7 A 2mOhm Max Radial, Horizontal (Open)
2300HT-1R2-H-RC
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Bourns Inc. |
| Series | 2300HT |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Toroidal |
| Material - Core | Iron Powder |
| Inductance | 1.2 µH |
| Tolerance | ±15% |
| Current Rating (Amps) | 38.7 A |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 2mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 200°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Horizontal (Open) |
| Supplier Device Package | - |
| Size / Dimension | 1.280" Dia (32.51mm) |
| Height - Seated (Max) | 0.650" (16.51mm) |
| Base Product Number | 2300HT |
| Product Attribute |  |
|
|
|
| Part Number | 2300HT-1R2-V-RC | 2300HT-1R8-H-RC | 2300HT-1R8-V-RC | 2300HT-100-H |
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | FIXED IND 1.2UH 38.7A 2 MOHM TH | FIXED IND 1.8UH 34.6A 3 MOHM TH | FIXED IND 1.8UH 34.6A 3 MOHM TH | FIXED IND 10UH 23.3A 6 MOHM TH |
| Series | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Packaging | Tray | Tray | Tray | Bulk |
