2300HT-681-H-RC

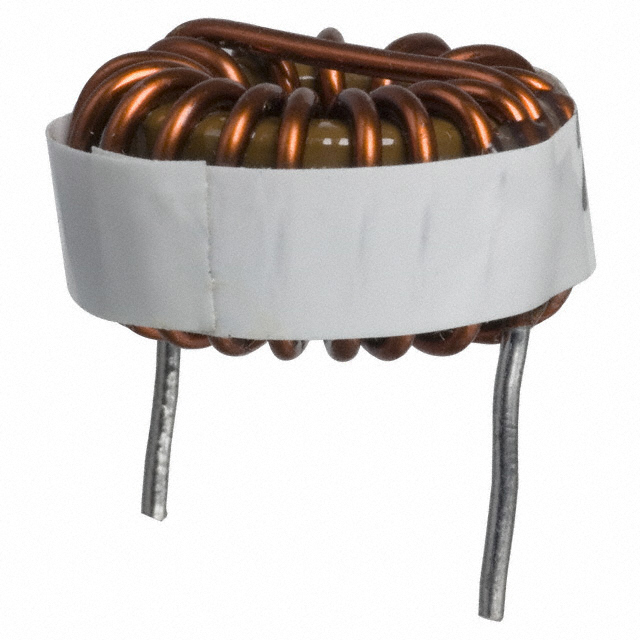

lmages are for reference only.2300HT-681-H-RC
FIXED IND 680UH 3.2A 270 MOHM TH
DatasheetRadial, Horizontal (Open)
33,612 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
680 µH Shielded Toroidal Inductor 3.2 A 270mOhm Max Radial, Horizontal (Open)
2300HT-681-H-RC
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Bourns Inc. |
| Series | 2300HT |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Toroidal |
| Material - Core | Iron Powder |
| Inductance | 680 µH |
| Tolerance | ±15% |
| Current Rating (Amps) | 3.2 A |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 270mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 200°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Horizontal (Open) |
| Supplier Device Package | - |
| Size / Dimension | 1.280" Dia (32.51mm) |
| Height - Seated (Max) | 0.650" (16.51mm) |
| Base Product Number | 2300HT |
| Product Attribute | |
|
 |
|
| Part Number | 2300HT-681-H-RC | 2300HT-681-H-RC | 2300HT-680-H-RC | 2300HT-680-V-RC |
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 680UH 3.2A 270 MOHM TH | FIXED IND 680UH 3.2A 270 MOHM TH | FIXED IND 68UH 9.2A 34 MOHM TH | FIXED IND 68UH 9.2A 34 MOHM TH |
| Series | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Packaging | Tray | Tray | Tray | Tray |
