2325102-1
lmages are for reference only.2325102-1
2POS,TAB1.2X0.6,HDR ASSY,180DEG,
Datasheet-
91,162 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Connector Header Through Hole 2 position 0.100" (2.54mm)
2325102-1
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | TE Connectivity Deutsch Connectors |
| Series | enetSEAL+ |
| Packaging | Bag |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Header |
| Contact Type | Tab |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Locking Ramp |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 1.018" (25.85mm) |
| Contact Shape | Rectangular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Features | Board Guide, Mounting Flange |
| Operating Temperature | -40°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Black |
| Current Rating (Amps) | 10A |
| Voltage Rating | 33VAC/DC |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | - |
| Applications | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

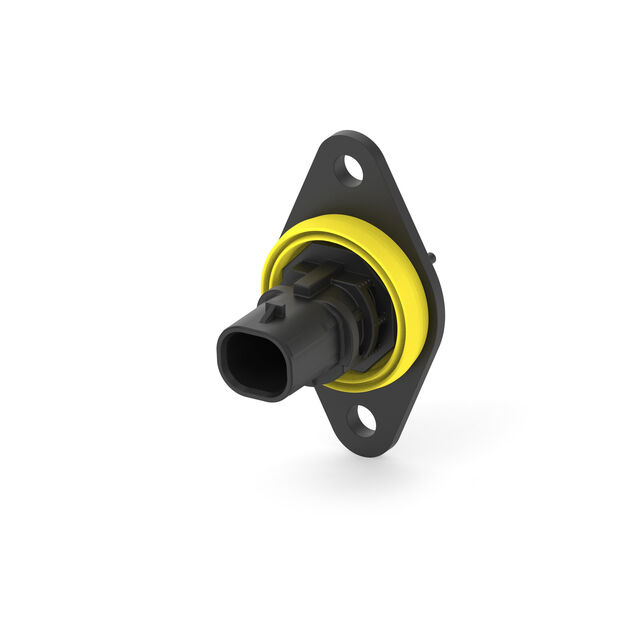

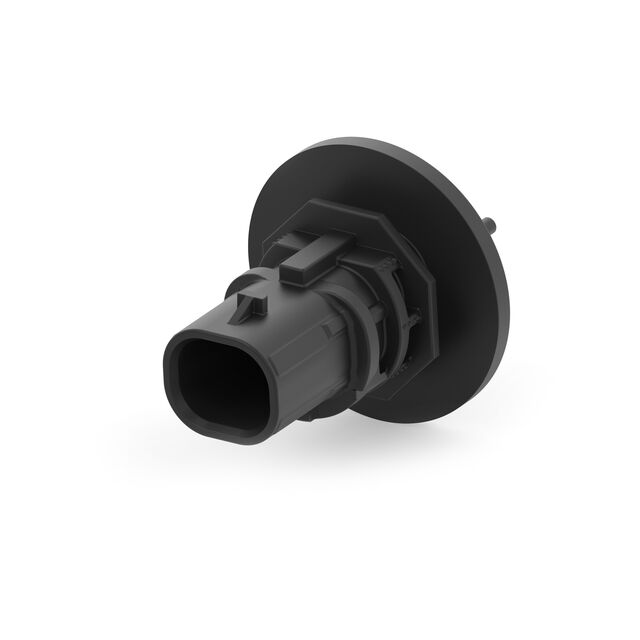

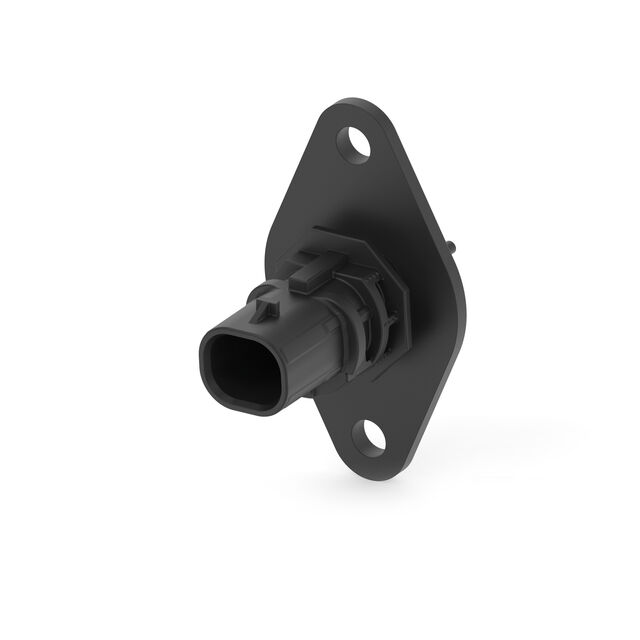

| Part Number | 2325102-7 | 2325103-1 | 2325103-7 | 2320-5121-TG |
| Manufacturer | TE Connectivity Deutsch Connectors | TE Connectivity Deutsch Connectors | TE Connectivity Deutsch Connectors | 3M |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | 2POS,TAB1.2X0.6,HDR ASSY,180DEG, | 2POS,TAB1.2X0.6,HDR ASSY,180DEG, | 2POS,TAB1.2X0.6,HDR ASSY,180DEG, | CONN HEADER R/A 20POS 2.54MM |
| Series | enetSEAL+ | enetSEAL+ | enetSEAL+ | 2300 |
| Packaging | Bag | Bag | Bag | Bulk |
