2450-001-X5U0-102P

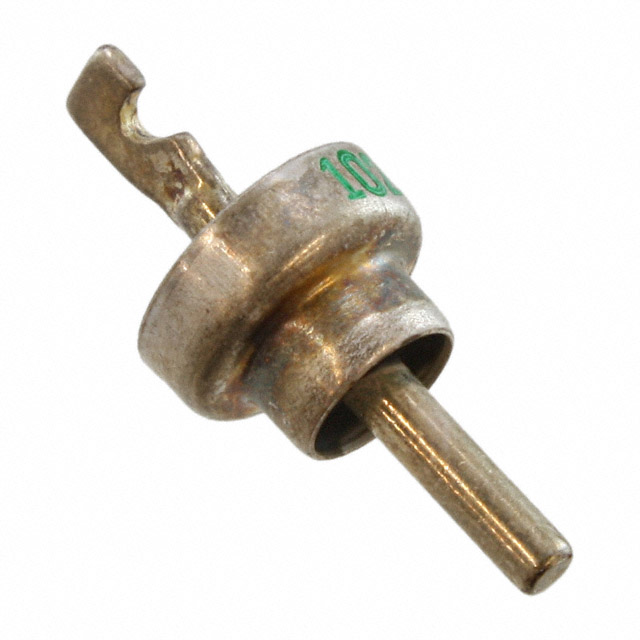

lmages are for reference only.2450-001-X5U0-102P
CAP FEEDTHRU 1000PF 500V AXIAL
DatasheetAxial, Discoidal - 1 Notched lead
37,426 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1000 pF Feed Through Capacitor 500V 20 A Axial, Discoidal - 1 Notched lead
2450-001-X5U0-102P
| Category | Filters - Feed Through Capacitors - |
| Manufacturer | Tusonix a Subsidiary of CTS Electronic Components |
| Series | 2450 |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Tolerance | 0%, +100% |
| Voltage - Rated | 500V |
| Current | 20 A |
| DC Resistance (DCR) (Max) | - |
| Operating Temperature | -55°C ~ 85°C |
| Insertion Loss | 20dB @ 100MHz |
| Temperature Coefficient | X5U |
| Ratings | - |
| Package / Case | Axial, Discoidal - 1 Notched lead |
| Size / Dimension | 0.281" Dia x 0.186" L (7.14mm x 4.72mm) |
| Height (Max) | - |
| Thread Size | - |
| Capacitance | 1000 pF |
| Mounting Type | Chassis Mount |
| Base Product Number | - |
| Product Attribute | |
|
 |
|
| Part Number | 2450-001-X5R0-101K | 2450-001-X5R0-471M | 2450-001-X5U0-102PLF | 2450-000-X5U0-102P |
| Manufacturer | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | CAP FEEDTHRU 100PF 500V AXIAL | CAP FEEDTHRU 470PF 500V AXIAL | CAP FEEDTHRU 1000PF 500V AXIAL | CAP FEEDTHRU 1000PF 500V AXIAL |
| Series | 2450 | 2450 | 2450 | 2450 |
| Packaging | Bulk | Bulk | Bulk | Bulk |
