249NQ135R-1
Manufacturer
SMC Diode SolutionsDescription
POWER MODULE 240A, 135V, PRM1-1
Datasheet
DatasheetPackage
HALF-PAK
In Stock
40,545 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
249NQ135R-1
249NQ135R-1
lmages are for reference only.Payment Methods
Delivery Services

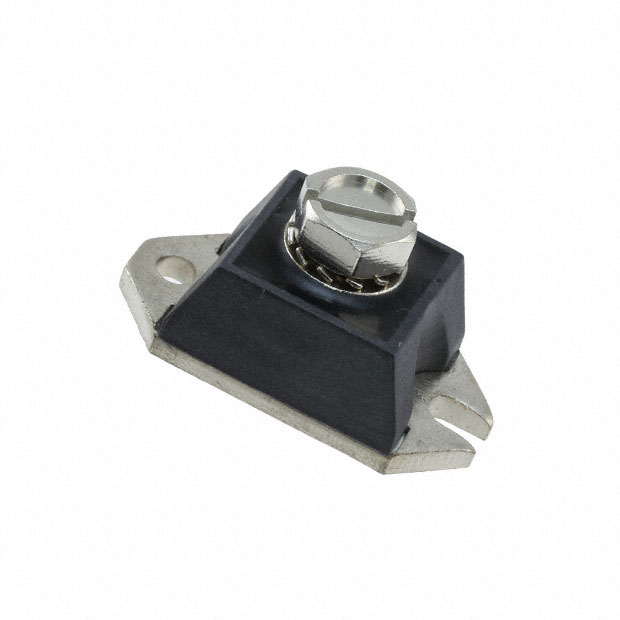

Diode 135 V 240A Chassis Mount PRM1-1 (Half Pak Module)
Quick Inquiry
249NQ135R-1
Specifications
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | SMC Diode Solutions |
| Series | 249NQ |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 135 V |
| Current - Average Rectified (Io) | 240A |
| Voltage - Forward (Vf) (Max) @ If | 1.07 V @ 240 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 6 mA @ 135 V |
| Capacitance @ Vr, F | 3990pF @ 5V, 1MHz |
| Mounting Type | Chassis Mount |
| Package / Case | HALF-PAK |
| Supplier Device Package | PRM1-1 (Half Pak Module) |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
