24PCDFH6G
lmages are for reference only.24PCDFH6G
SENSOR 30PSIC M5 .33V
Datasheet4-SIP Module
14,908 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor ±30PSI (±206.84kPa) Compound Male - M5 0 mV ~ 330 mV (10V) 4-SIP Module
24PCDFH6G
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | 24PC |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Base Product Number | 24PCDFH |
| Applications | Board Mount |
| Pressure Type | Compound |
| Operating Pressure | ±30PSI (±206.84kPa) |
| Output Type | Wheatstone Bridge |
| Output | 0 mV ~ 330 mV (10V) |
| Accuracy | ±1% |
| Voltage - Supply | 10V ~ 12V |
| Port Size | Male - M5 |
| Port Style | Threaded |
| Features | - |
| Termination Style | PC Pin |
| Maximum Pressure | ±60PSI (±413.69kPa) |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP Module |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|

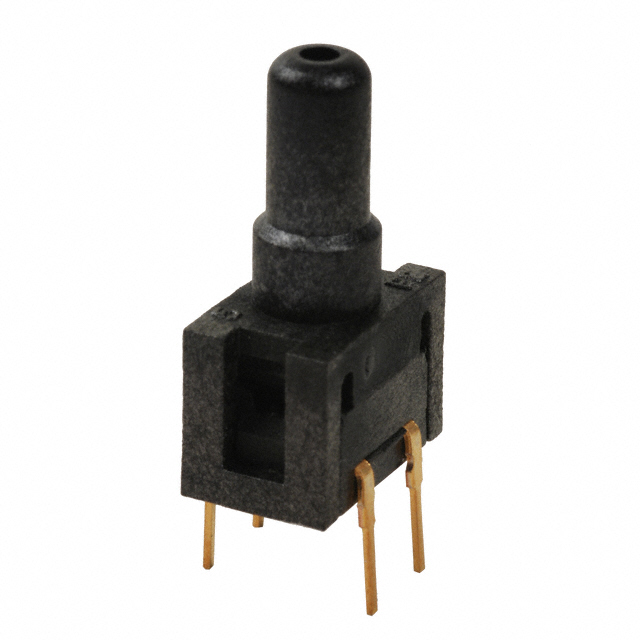

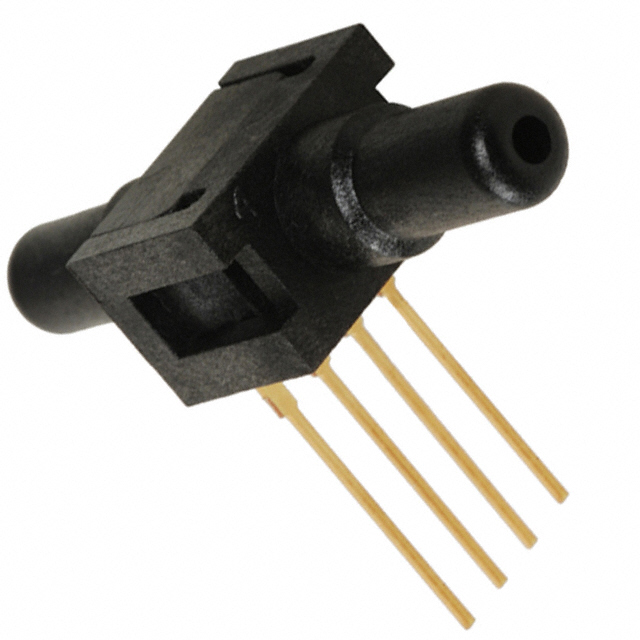

| Part Number | 24PCDFA2G | 24PCDFA6A | 24PCDFA6D | 24PCDFA6D |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | SENSOR 30PSIC 0.25" .33V | SENSOR 30PSIA 0.2" | SENSOR 30PSID 0.2" .33V | SENSOR 30PSID 0.2" .33V |
| Series | 24PC | 24PC | 24PC | 24PC |
| Packaging | Bulk | Bulk | Tray | Tray |
