Product CatalogPart Number
28630806RP2
Manufacturer
NorComp Inc.Description
CONN RCPT 8POS 0.079 GOLD SMD
Datasheet
DatasheetPackage
-
In Stock
25,222 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
28630806RP2
28630806RP2
lmages are for reference only.Payment Methods
Delivery Services
8 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold
Quick Inquiry
28630806RP2
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Receptacles-Female Sockets |
| Manufacturer | NorComp Inc. |
| Series | 2863 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | - |
| Number of Positions | 8 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Insulation Color | Black |
| Insulation Height | 0.170" (4.32mm) |
| Contact Length - Post | - |
| Operating Temperature | -40°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | 1A |
| Voltage Rating | - |
| Applications | - |
| Insulation Material | Polyamide (PA6T), Nylon 6T |
| Contact Shape | Square |
| Contact Material | Phosphor Bronze |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Base Product Number | 2863080 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

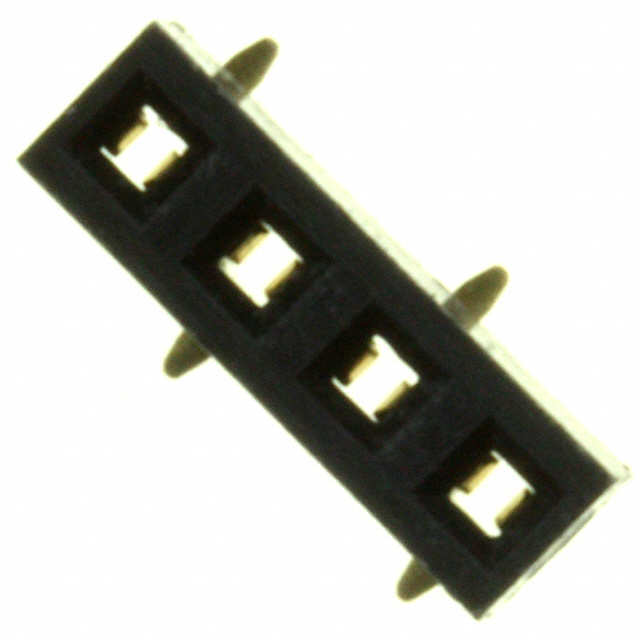

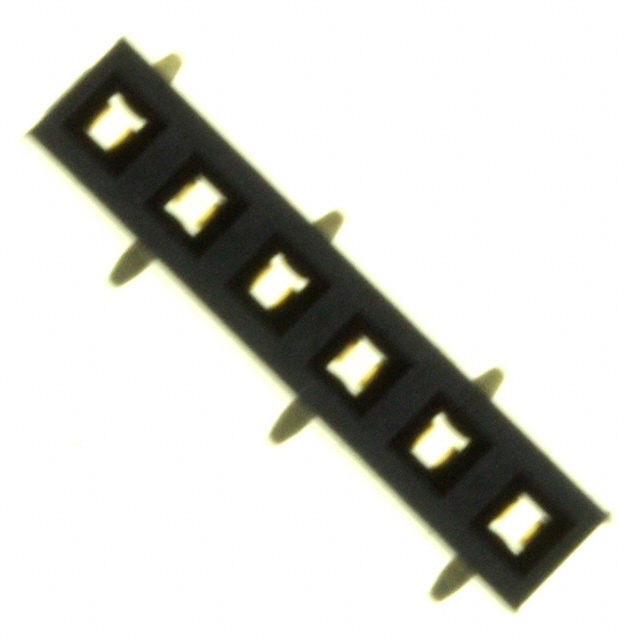

| Part Number | 28630406RP2 | 28630606RP2 | 2-100400-0 | 2-100411-0 |
| Manufacturer | NorComp Inc. | NorComp Inc. | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | CONN RCPT 4POS 0.079 GOLD SMD | CONN RCPT 6POS 0.079 GOLD SMD | CONN RCPT 20POS 0.1 TIN PCB R/A | CONN RCPT 20POS 0.1 TIN PCB |
| Series | NorComp Inc. | NorComp Inc. | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Packaging | Tube | Tube | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
