29-011-11A
lmages are for reference only.29-011-11A
RELAY GEN PURPOSE SPST 75A 12V
Datasheet-
17,861 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay SPST-NO (DM) (1 Form X) 12VDC Coil Chassis Mount
29-011-11A
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Deutsch Connectors |
| Series | 29, KISSLING |
| Packaging | Bulk |
| RoHS Status | |
| Mounting Type | Chassis Mount |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (DM) (1 Form X) |
| Contact Rating (Current) | 75 A |
| Switching Voltage | - |
| Load - Max Switching | 8W |
| Coil Current | 631.6 mA |
| Coil Type | Non Latching |
| Features | Diode |
| Termination Style | Screw Terminal |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 2 VDC |
| Operate Time | 35 ms |
| Release Time | 15 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Approval Agency | - |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 19 Ohms |
| Base Product Number | 29-011 |
| Product Attribute | |
 |
 |
|

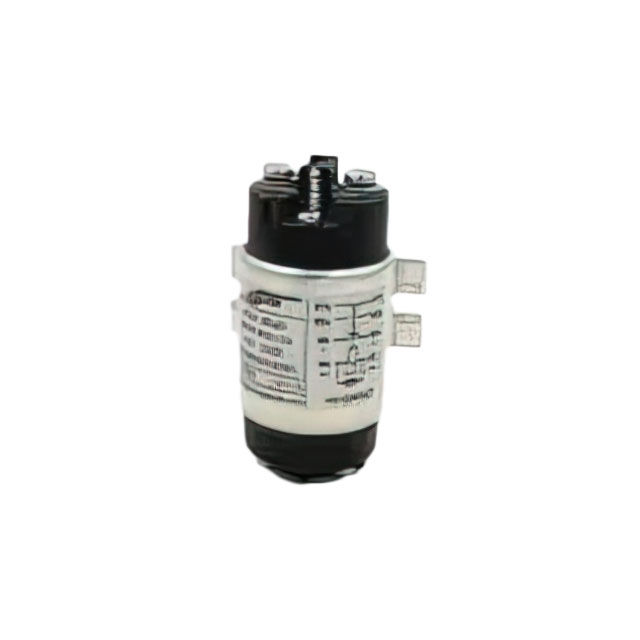

| Part Number | 29-011-11 | 29-011-12 | 29-011-12A | 29-013-11 |
| Manufacturer | TE Connectivity Deutsch Connectors | TE Connectivity Deutsch Connectors | TE Connectivity Deutsch Connectors | TE Connectivity Deutsch Connectors |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | RELAY GEN PURPOSE SPST 75A 12V | RELAY GEN PURPOSE SPST 75A | RELAY GEN PURPOSE SPST 75A 28V | RELAY GEN PURPOSE SPST 75A 12V |
| Series | TE Connectivity Deutsch Connectors | TE Connectivity Deutsch Connectors | TE Connectivity Deutsch Connectors | TE Connectivity Deutsch Connectors |
| Packaging | Box | Box | Box | Bulk |
