Product CatalogPart Number
2909056
Manufacturer
Phoenix ContactDescription
REL-PR3-125DC/3X21
Datasheet
DatasheetPackage
-
In Stock
21,861 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
2909056
2909056
lmages are for reference only.Payment Methods
Delivery Services
General Purpose Relay 3PDT (3 Form C) 125VDC Coil Socketable
Quick Inquiry
2909056
Specifications
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | Phoenix Contact |
| Series | REL-PR3 |
| Packaging | Bulk |
| RoHS Status | |
| Mounting Type | Socketable |
| Coil Voltage | 125VDC |
| Contact Form | 3PDT (3 Form C) |
| Contact Rating (Current) | 16 A |
| Switching Voltage | 440VAC, 250VDC - Max |
| Load - Max Switching | 7040VA, 4000W |
| Coil Current | 11 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Plug In |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 106.25 VDC |
| Must Release Voltage | - |
| Operate Time | 20 ms |
| Release Time | 15 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver Nickel (AgNi) |
| Approval Agency | CSA, cULus, EAC, UL |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 11.364 kOhms |
| Base Product Number | 29090 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

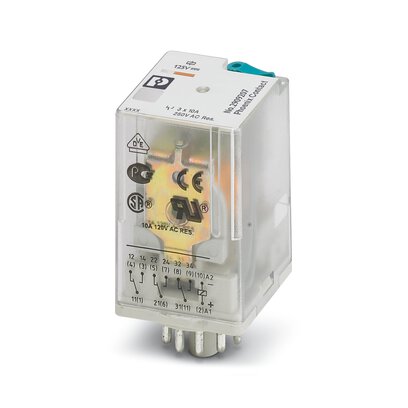

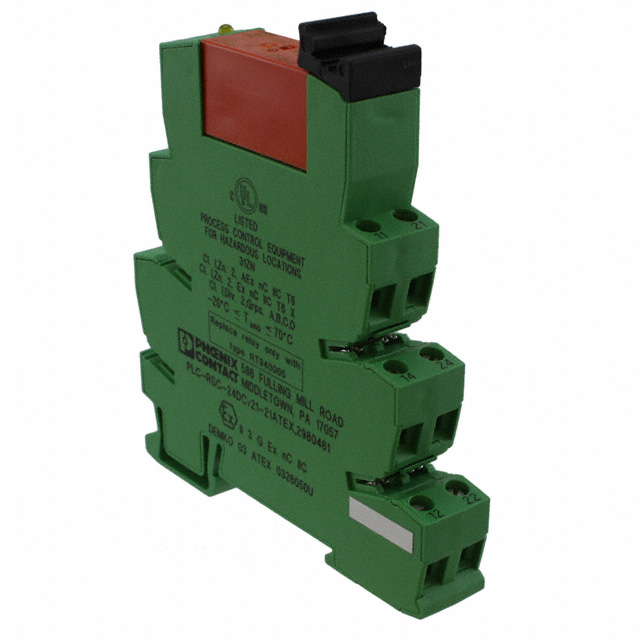

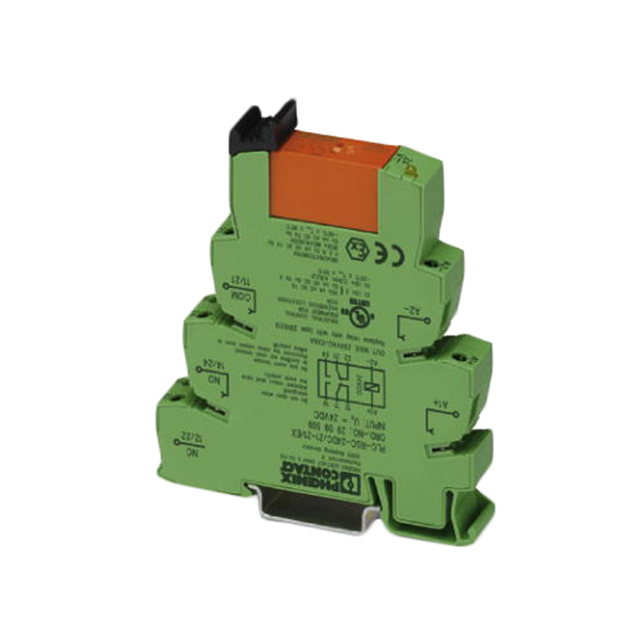

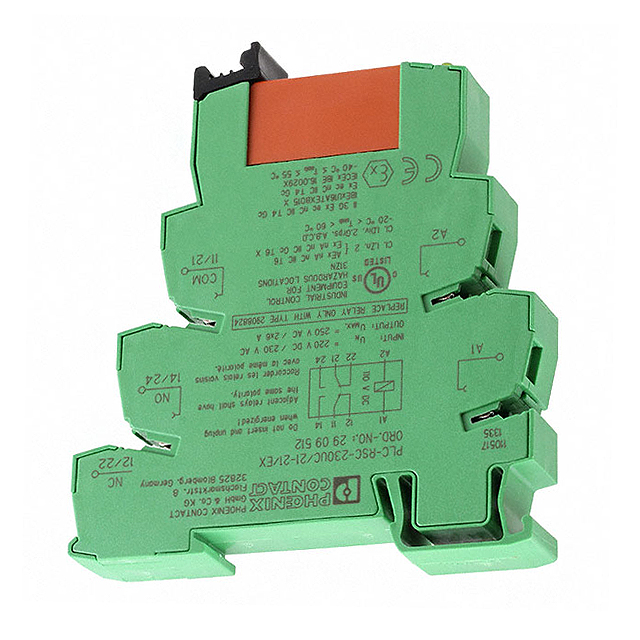

| Part Number | 2909207 | 2909509 | 2909511 | 2909512 |
| Manufacturer | Phoenix Contact | Phoenix Contact | Phoenix Contact | Phoenix Contact |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | REL-OR3/LDP-125DC/3X21 | RELAY GEN PURPOSE DPDT 6A 24V | RELAY GEN PURPOSE DPDT 6A 120V | RELAY GEN PURPOSE DPDT 6A 230V |
| Series | Phoenix Contact | Phoenix Contact | Phoenix Contact | Phoenix Contact |
| Packaging | Bulk | Bulk | Bulk | Bulk |
