293D475X9020B2TE3
lmages are for reference only.293D475X9020B2TE3
CAP TANT 4.7UF 10% 20V 1411
Datasheet1411 (3528 Metric)
85,276 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
4.7 µF Molded Tantalum Capacitors 20 V 1411 (3528 Metric) 2.9Ohm
293D475X9020B2TE3
| Category | Capacitors - Tantalum Capacitors - |
| Manufacturer | Vishay Sprague |
| Series | TANTAMOUNT™, 293D |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 4.7 µF |
| Tolerance | ±10% |
| Voltage - Rated | 20 V |
| Type | Molded |
| ESR (Equivalent Series Resistance) | 2.9Ohm |
| Operating Temperature | -55°C ~ 125°C |
| Lifetime @ Temp. | - |
| Mounting Type | Surface Mount |
| Package / Case | 1411 (3528 Metric) |
| Size / Dimension | 0.138" L x 0.110" W (3.50mm x 2.80mm) |
| Height - Seated (Max) | 0.083" (2.11mm) |
| Lead Spacing | - |
| Manufacturer Size Code | B |
| Ratings | - |
| Features | General Purpose |
| Failure Rate | - |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
| Product Attribute |  |
|
|
 |

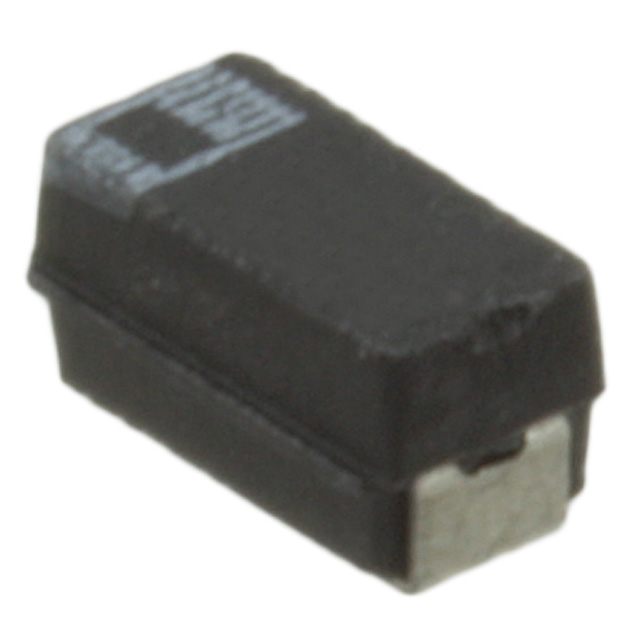

| Part Number | 293D475X9020A2TE3 | 293D475X9020B8T | 293D475X9020C2TE3 | 293D475X9025A2TE3 |
| Manufacturer | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP TANT 4.7UF 10% 20V 1206 | 293D475X9020B8T | CAP TANT 4.7UF 10% 20V 2312 | 293D475X9025A2TE3 |
| Series | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
