2SEPC820MW+TSS

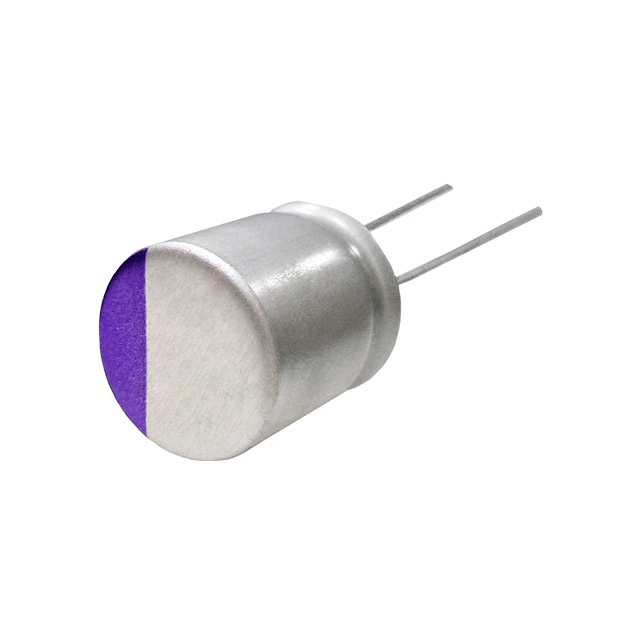

lmages are for reference only.2SEPC820MW+TSS
CAP ALUM POLY 820UF 20% 2.5V TH
DatasheetRadial, Can
24,707 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
820 µF 2.5 V Aluminum - Polymer Capacitors Radial, Can 7mOhm 5000 Hrs @ 105°C
2SEPC820MW+TSS
| Category | Capacitors - Aluminum Polymer Capacitors - |
| Manufacturer | Panasonic Electronic Components |
| Series | OS-CON™, SEPC |
| Packaging | Cut Tape (CT)-->Tape & Box (TB) |
| RoHS Status | ROHS3 Compliant |
| Type | Polymer |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 2.5 V |
| ESR (Equivalent Series Resistance) | 7mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 280 mA @ 120 Hz |
| Ripple Current @ High Frequency | 5.6 A @ 100 kHz |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.354" (9.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Base Product Number | 2SEPC |
| Features | - |
| Impedance | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | 2SEPC820MD | 2SEPC820MD+TSS | 2SEPC820MW | 2SEPC820MX |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM POLY 820UF 20% 2.5V TH | CAP ALUM POLY 820UF 20% 2.5V TH | CAP ALUM POLY 820UF 20% 2.5V TH | CAP ALUM POLY 820UF 20% 2.5V TH |
| Series | OS-CON™, SEPC | OS-CON™, SEPC | OS-CON™, SEPC | OS-CON™, SEPC |
| Packaging | Bulk | Tape & Box (TB) | Bulk | Bulk |
