Product CatalogPart Number
2SK4097LS
Manufacturer
SanyoDescription
MOSFET N-CH 500V 9.5A TO220FI
Datasheet
DatasheetPackage
TO-220-3 Full Pack
In Stock
57,076 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
2SK4097LS
2SK4097LS
lmages are for reference only.Payment Methods
Delivery Services
N-Channel 500 V 8.3A (Tc) 2W (Ta), 35W (Tc) Through Hole TO-220FI(LS)
Quick Inquiry
2SK4097LS
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Sanyo |
| Series | - |
| Packaging | Bulk |
| RoHS Status | Not applicable |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 500 V |
| Current - Continuous Drain (Id) @ 25°C | 8.3A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | - |
| Rds On (Max) @ Id, Vgs | 650mOhm @ 5A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 1mA |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 750 pF @ 30 V |
| FET Feature | - |
| Power Dissipation (Max) | 2W (Ta), 35W (Tc) |
| Operating Temperature | 150°C |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220FI(LS) |
| Package / Case | TO-220-3 Full Pack |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 30 nC @ 10 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute | |
 |
 |
|
| Part Number | 2SK4097LS | 2SK4092-S35-A | 2SK4093TZ-E | 2SK4094-1E |
| Manufacturer | onsemi | Renesas | Renesas Electronics Corporation | onsemi |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 500V 8.3A TO220FI | 2SK4092-S35-A - SWITCHING N-CHAN | MOSFET N-CH 250V 1A TO92MOD | MOSFET N-CH 60V 100A TO220-3 |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Tape & Reel (TR) | Tube |
Customers Also Interested in
Recommended Products
2SK4016(Q)
Toshiba Semiconductor and Storage
.jpg "2SK4017(Q)")
2SK4017(Q)
Toshiba Semiconductor and Storage
.jpg "2SK4021(Q)")

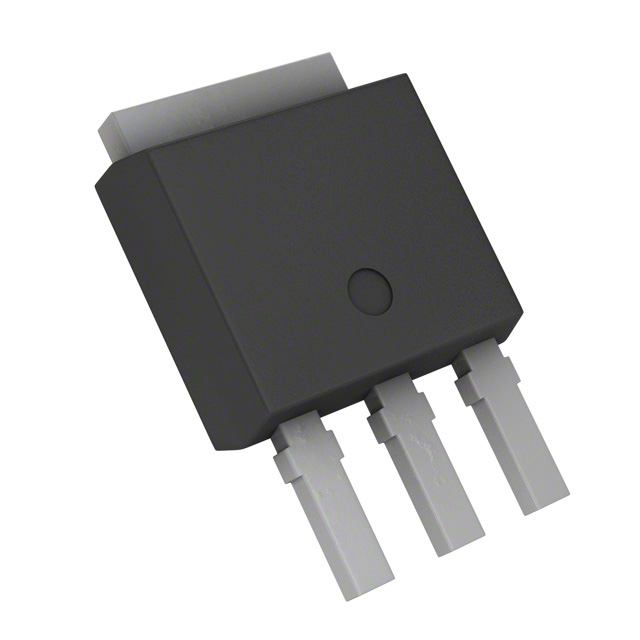

2SK4021(Q)
Toshiba Semiconductor and Storage

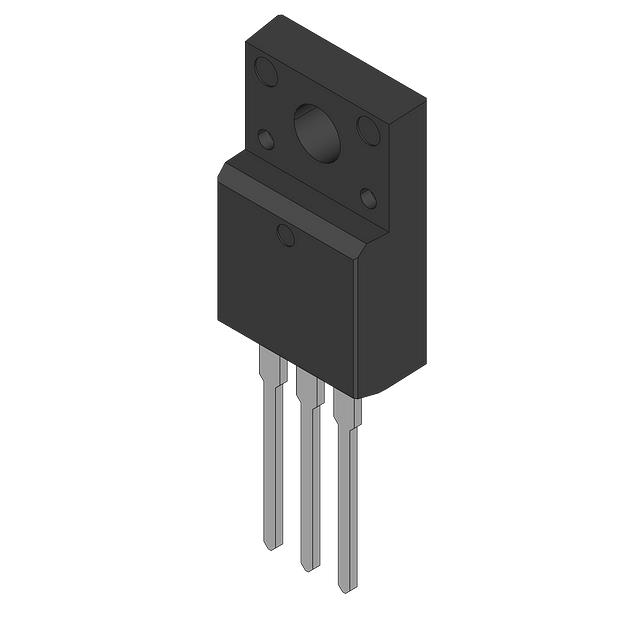

2SK4043LS
onsemi
2SK4065-DL-1E
onsemi
2SK4065-DL-1E
onsemi
2SK4065-DL-1EX
onsemi
2SK4065-DL-1EX
onsemi
2SK4065-DL-E
onsemi
2SK4065-E
onsemi

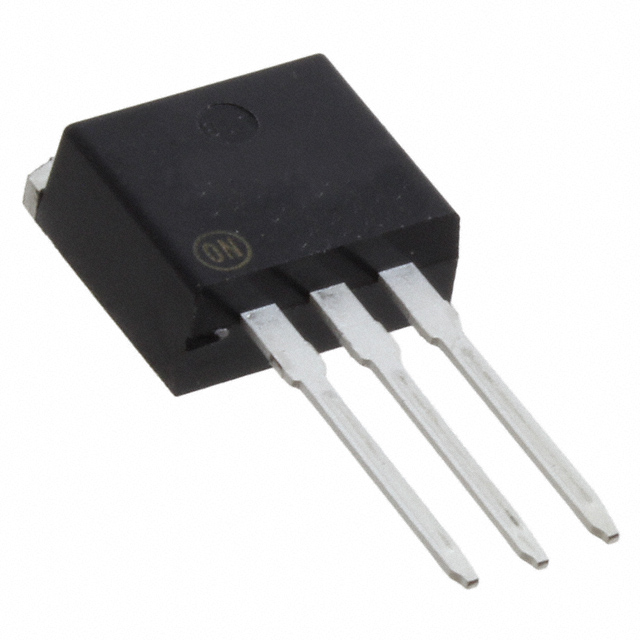

2SK4066-1E
onsemi
2SK4066-DL-1E
onsemi

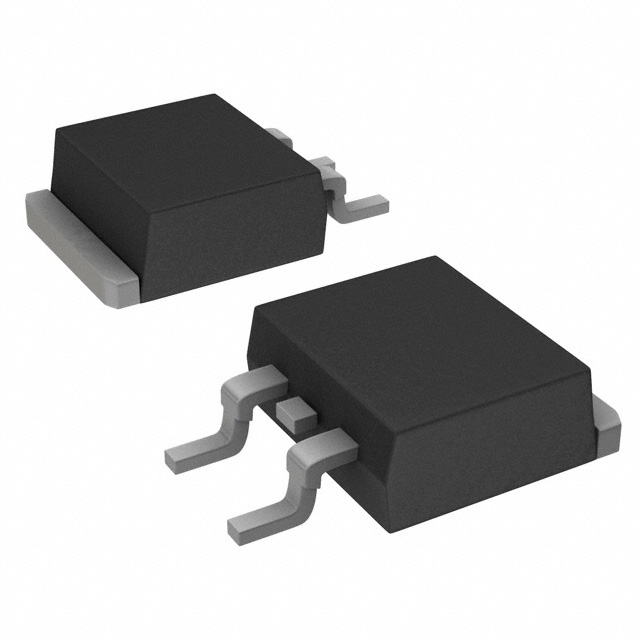

2SK4066-DL-1EX
