3.0SMCJ10A-AQ

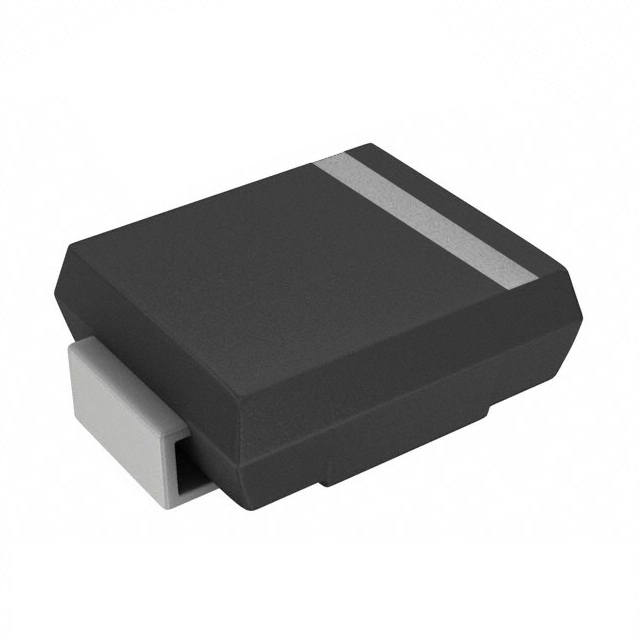

lmages are for reference only.3.0SMCJ10A-AQ
TVS DIODE 10VWM 17VC DO-214AB
DatasheetDO-214AB, SMC
89,676 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
17V Clamp 176.4A Ipp Tvs Diode Surface Mount DO-214AB (SMC)
3.0SMCJ10A-AQ
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Diotec Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 10V |
| Voltage - Breakdown (Min) | 11.1V |
| Voltage - Clamping (Max) @ Ipp | 17V |
| Current - Peak Pulse (10/1000µs) | 176.4A |
| Power - Peak Pulse | 3000W (3kW) |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -50°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | DO-214AB (SMC) |
| Base Product Number | - |
| Unidirectional Channels | 1 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
|
|
| Part Number | 3.0SMCJ10A-AU_R2_000A1 | 3.0SMCJ10A | 3.0SMCJ10A | 3.0SMCJ10A |
| Manufacturer | Panjit International Inc. | Diotec Semiconductor | Littelfuse Inc. | SMC Diode Solutions |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | SURFACE MOUNT TRANSIENT VOLTAGE | TVS DIODE 10VWM 17VC DO-214AB | TVS DIODE 3000W UNI DO-214AB 10V | TVS DIODE 10VWM 17VC SMC |
| Series | Panjit International Inc. | Diotec Semiconductor | Littelfuse Inc. | SMC Diode Solutions |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tape & Reel (TR) | Tape & Reel (TR) |
