3.0SMCJ120CA

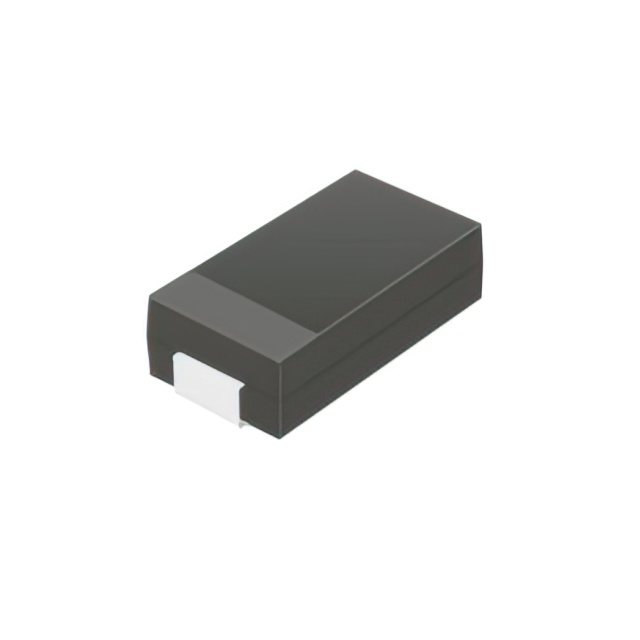

lmages are for reference only.3.0SMCJ120CA
TVS DIODE 120VWM 193VC DO-214AB
DatasheetDO-214AB, SMC
76,089 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
193V Clamp 15.5A Ipp Tvs Diode Surface Mount DO-214AB (SMC)
3.0SMCJ120CA
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Diotec Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 120V |
| Voltage - Breakdown (Min) | 133V |
| Voltage - Clamping (Max) @ Ipp | 193V |
| Current - Peak Pulse (10/1000µs) | 15.5A |
| Power - Peak Pulse | 3000W (3kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -50°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | DO-214AB (SMC) |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
|
| Part Number | 3.0SMCJ120CA | 3.0SMCJ120CA-13 | 3.0SMCJ120CA-HF | 3.0SMCJ120CA_R1_00001 |
| Manufacturer | SMC Diode Solutions | Diodes Incorporated | Comchip Technology | Panjit International Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 120VWM 193VC SMC | TRANSIENT VOLTAGE SUPPRESSOR SMC | DIODE TVS 120V 3000W SMC BI-DIR | SURFACE MOUNT TRANSIENT VOLTAGE |
| Series | SMC Diode Solutions | Diodes Incorporated | Comchip Technology | Panjit International Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
