3.0SMCJ13A
lmages are for reference only.3.0SMCJ13A
TVS, UNI-DIR, 3000W, 13V, DO-214
DatasheetDO-214AB, SMC
91,171 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
21.6V Clamp 139.4A Ipp Tvs Diode Surface Mount DO-214AB (SMC)
3.0SMCJ13A
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Good-Ark Semiconductor |
| Series | 3.0SMCJx |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 13V |
| Voltage - Breakdown (Min) | 14.4V |
| Voltage - Clamping (Max) @ Ipp | 21.6V |
| Current - Peak Pulse (10/1000µs) | 139.4A |
| Power - Peak Pulse | 3000W (3kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | DO-214AB (SMC) |
| Base Product Number | - |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
 |

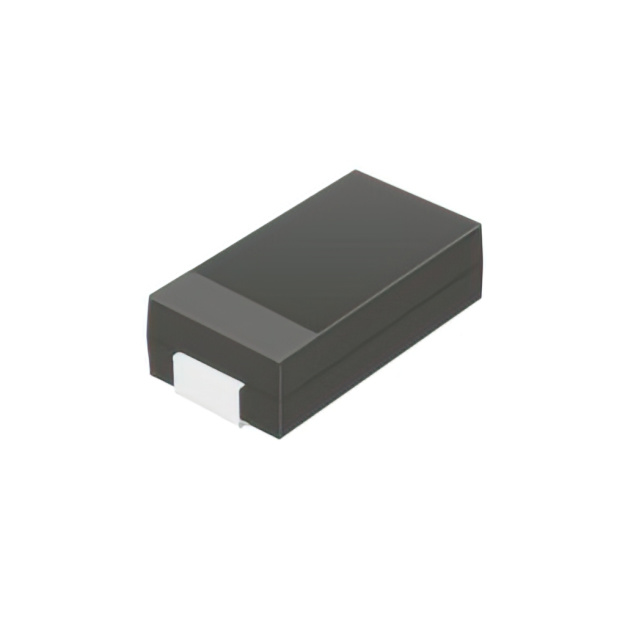

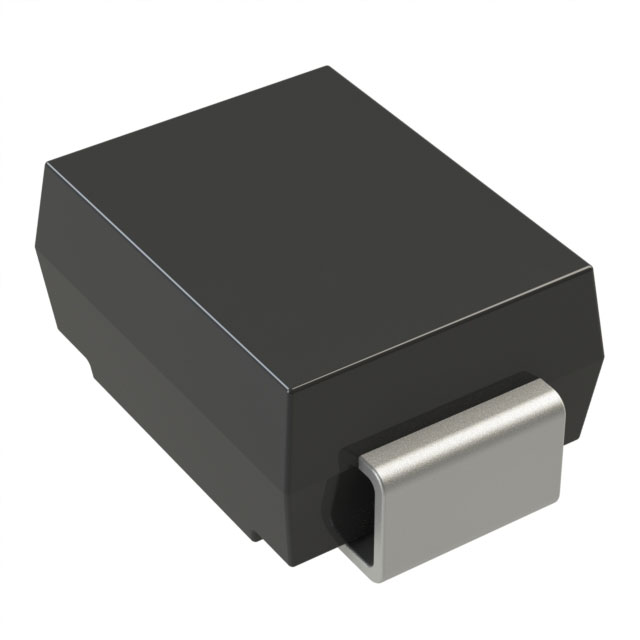

| Part Number | 3.0SMCJ130A | 3.0SMCJ130A | 3.0SMCJ130A-HF | 3.0SMCJ130AQ-13 |
| Manufacturer | Diotec Semiconductor | SMC Diode Solutions | Comchip Technology | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TVS DIODE 130VWM 209VC DO-214AB | TVS DIODE 130VWM 209VC SMC | DIODE TVS 130V 3000W SMC UNI-DIR | TRANSIENT VOLTAGE SUPPRESSOR SMC |
| Series | Diotec Semiconductor | SMC Diode Solutions | Comchip Technology | Diodes Incorporated |
| Packaging | Bulk | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
