3.0SMCJ17A-HF

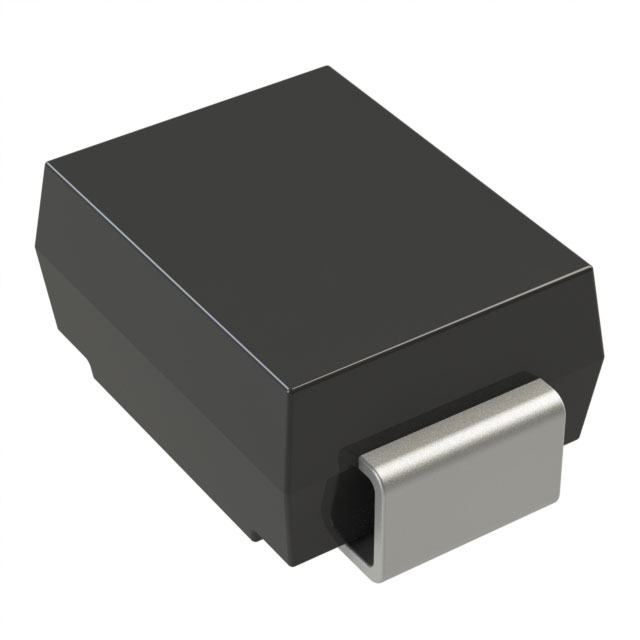

lmages are for reference only.3.0SMCJ17A-HF
DIODE TVS 17V 3000W SMC UNI-DIR
DatasheetDO-214AB, SMC
68,468 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
27.6V Clamp 108.7A Ipp Tvs Diode Surface Mount DO-214AB (SMC)
3.0SMCJ17A-HF
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Comchip Technology |
| Series | 3.0SMCJ |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 17V |
| Voltage - Breakdown (Min) | 18.9V |
| Voltage - Clamping (Max) @ Ipp | 27.6V |
| Current - Peak Pulse (10/1000µs) | 108.7A |
| Power - Peak Pulse | 3000W (3kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | DO-214AB (SMC) |
| Base Product Number | 3.0SMCJ |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
 |
| Part Number | 3.0SMCJ17A | 3.0SMCJ17A | 3.0SMCJ17A | 3.0SMCJ17A-13 |
| Manufacturer | Diotec Semiconductor | SMC Diode Solutions | Littelfuse Inc. | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TVS DIODE 17VWM 27.6VC DO-214AB | TVS DIODE 17VWM 27.6VC SMC | TVS DIODE 3000W UNI DO-214AB 17V | TRANSIENT VOLTAGE SUPPRESSOR SMC |
| Series | Diotec Semiconductor | SMC Diode Solutions | Littelfuse Inc. | Diodes Incorporated |
| Packaging | Bulk | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
