Product CatalogPart Number
3.0SMCJ40CA
Manufacturer
SMC Diode SolutionsDescription
TVS DIODE 40VWM 64.5VC SMC
Datasheet
DatasheetPackage
DO-214AB, SMC
In Stock
25,442 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
3.0SMCJ40CA
3.0SMCJ40CA
lmages are for reference only.Payment Methods
Delivery Services
64.5V Clamp 46.4A Ipp Tvs Diode Surface Mount DO-214AB (SMC)
Quick Inquiry
3.0SMCJ40CA
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | SMC Diode Solutions |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 40V |
| Voltage - Breakdown (Min) | 44.4V |
| Voltage - Clamping (Max) @ Ipp | 64.5V |
| Current - Peak Pulse (10/1000µs) | 46.4A |
| Power - Peak Pulse | 3000W (3kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | DO-214AB (SMC) |
| Base Product Number | 3.0SMCJ |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute | |
|
 |
 |

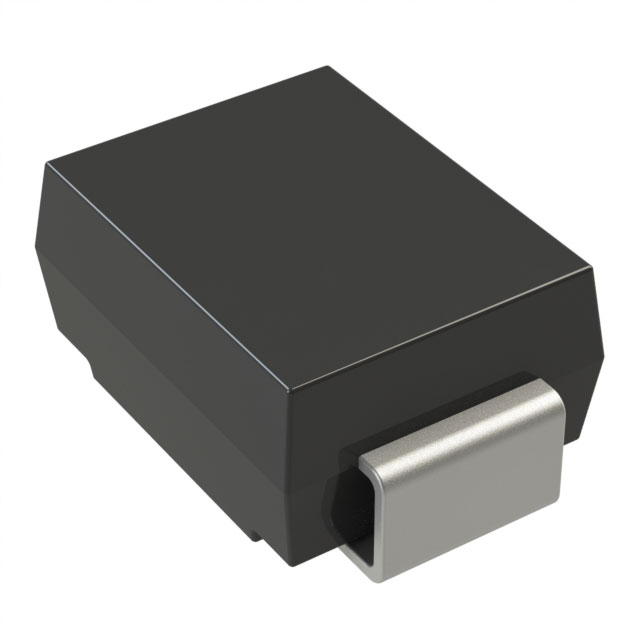

| Part Number | 3.0SMCJ40CA | 3.0SMCJ40CA | 3.0SMCJ40CA-13 | 3.0SMCJ40CA-AQ |
| Manufacturer | Diotec Semiconductor | Littelfuse Inc. | Diodes Incorporated | Diotec Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | TVS DIODE 40VWM 64.5VC DO-214AB | TVS DIOD 3000W DO-214AB 40V | TRANSIENT VOLTAGE SUPPRESSOR SMC | TVS DIODE 40VWM 64.5VC DO-214AB |
| Series | Diotec Semiconductor | Littelfuse Inc. | Diodes Incorporated | Diotec Semiconductor |
| Packaging | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Bulk |
Customers Also Interested in
Recommended Products
3.0SMC20A
Littelfuse Inc.
3.0SMC24A
Littelfuse Inc.
3.0SMC28A
Littelfuse Inc.
3.0SMC30A
Littelfuse Inc.
3.0SMC33A
Littelfuse Inc.
3.0SMCJ100A
Diotec Semiconductor
3.0SMCJ100A
SMC Diode Solutions

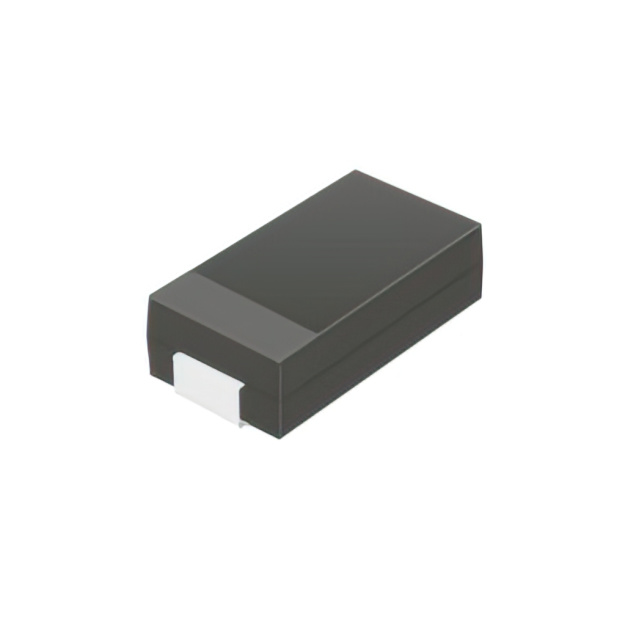

3.0SMCJ100A-HF
