3.0SMCJ58CA-AU_R1_000A1
lmages are for reference only.3.0SMCJ58CA-AU_R1_000A1
SURFACE MOUNT TRANSIENT VOLTAGE
DatasheetDO-214AB, SMC
82,449 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
93.6V Clamp 32A Ipp Tvs Diode Surface Mount DO-214AB (SMC)
3.0SMCJ58CA-AU_R1_000A1
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Panjit International Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 58V |
| Voltage - Breakdown (Min) | 64.4V |
| Voltage - Clamping (Max) @ Ipp | 93.6V |
| Current - Peak Pulse (10/1000µs) | 32A |
| Power - Peak Pulse | 3000W (3kW) |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | DO-214AB (SMC) |
| Base Product Number | 3.0SMCJ |
| Unidirectional Channels | - |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
|
 |
 |

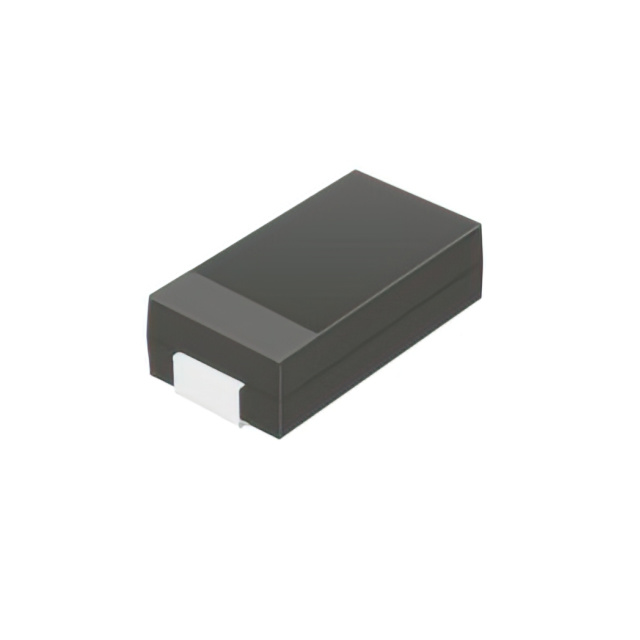

| Part Number | 3.0SMCJ5.0A | 3.0SMCJ5.0A | 3.0SMCJ5.0A-13 | 3.0SMCJ5.0A-HF |
| Manufacturer | Diotec Semiconductor | SMC Diode Solutions | Diodes Incorporated | Comchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TVS DIODE 5VWM 9.2VC DO-214AB | TVS DIODE 5VWM 9.2VC SMC | TVS DIODE 5VWM 9.2VC SMC | DIODE TVS 5V 3000W SMC UNI-DIR |
| Series | Diotec Semiconductor | SMC Diode Solutions | Diodes Incorporated | Comchip Technology |
| Packaging | Bulk | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
