3.0SMCJ60CAQ-13
lmages are for reference only.3.0SMCJ60CAQ-13
TRANSIENT VOLTAGE SUPPRESSOR PP
DatasheetDO-214AB, SMC
13,104 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
96.8V Clamp 31A Ipp Tvs Diode Surface Mount SMC
3.0SMCJ60CAQ-13
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 60V |
| Voltage - Breakdown (Min) | 66.7V |
| Voltage - Clamping (Max) @ Ipp | 96.8V |
| Current - Peak Pulse (10/1000µs) | 31A |
| Power - Peak Pulse | 3000W (3kW) |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | SMC |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
|
 |
 |

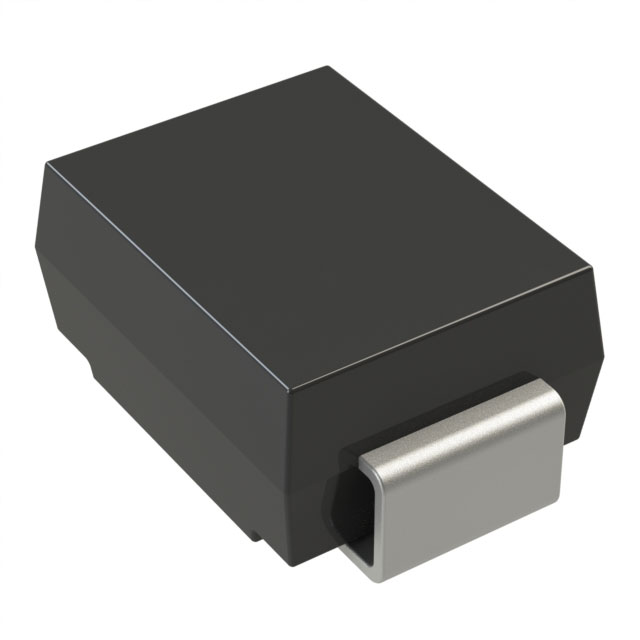

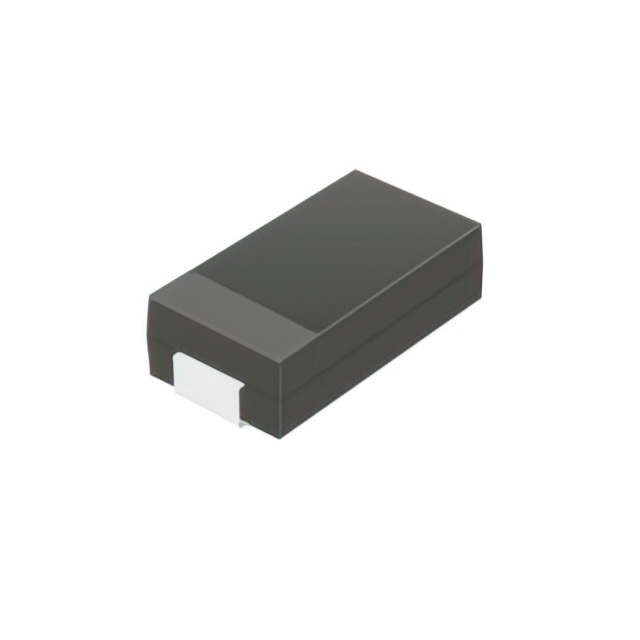

| Part Number | 3.0SMCJ60A | 3.0SMCJ60A | 3.0SMCJ60A-13 | 3.0SMCJ60A-HF |
| Manufacturer | Diotec Semiconductor | SMC Diode Solutions | Diodes Incorporated | Comchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TVS DIODE 60VWM 96.8VC DO-214AB | TVS DIODE 60VWM 96.8VC SMC | TRANSIENT VOLTAGE SUPPRESSOR SMC | DIODE TVS 60V 3000W SMC UNI-DIR |
| Series | Diotec Semiconductor | SMC Diode Solutions | Diodes Incorporated | Comchip Technology |
| Packaging | Bulk | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
