3.0SMCJ7.5CA-HF
lmages are for reference only.3.0SMCJ7.5CA-HF
DIODE TVS 7.5V 3000W SMC BI-DIR
DatasheetDO-214AB, SMC
37,217 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
12.9V Clamp 232.6A Ipp Tvs Diode Surface Mount DO-214AB (SMC)
3.0SMCJ7.5CA-HF
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Comchip Technology |
| Series | 3.0SMCJ |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 7.5V |
| Voltage - Breakdown (Min) | 8.33V |
| Voltage - Clamping (Max) @ Ipp | 12.9V |
| Current - Peak Pulse (10/1000µs) | 232.6A |
| Power - Peak Pulse | 3000W (3kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | DO-214AB (SMC) |
| Base Product Number | 3.0SMCJ |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
 |

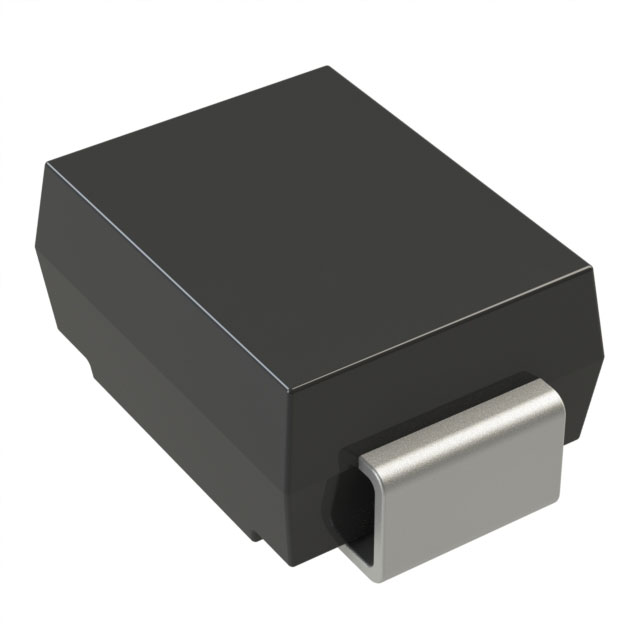

| Part Number | 3.0SMCJ7.5CA | 3.0SMCJ7.5CA | 3.0SMCJ7.5CA | 3.0SMCJ7.5CA-13 |
| Manufacturer | SMC Diode Solutions | Diotec Semiconductor | Littelfuse Inc. | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TVS DIODE 7.5VWM 12.9VC SMC | TVS DIODE 7.5VWM 12.9VC DO-214AB | TVS DIOD 3000W DO-214AB 7.5V | TRANSIENT VOLTAGE SUPPRESSOR SMC |
| Series | SMC Diode Solutions | Diotec Semiconductor | Littelfuse Inc. | Diodes Incorporated |
| Packaging | Tape & Reel (TR) | Bulk | Tape & Reel (TR) | Tape & Reel (TR) |
