3.0SMCJ78A-13
lmages are for reference only.3.0SMCJ78A-13
TRANSIENT VOLTAGE SUPPRESSOR SMC
DatasheetDO-214AB, SMC
68,328 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
126V Clamp 23.8A Ipp Tvs Diode Surface Mount SMC
3.0SMCJ78A-13
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Diodes Incorporated |
| Series | 3.0SMCJ |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 78V |
| Voltage - Breakdown (Min) | 86.7V |
| Voltage - Clamping (Max) @ Ipp | 126V |
| Current - Peak Pulse (10/1000µs) | 23.8A |
| Power - Peak Pulse | 3000W (3kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | SMC |
| Base Product Number | 3.0SMCJ |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
 |

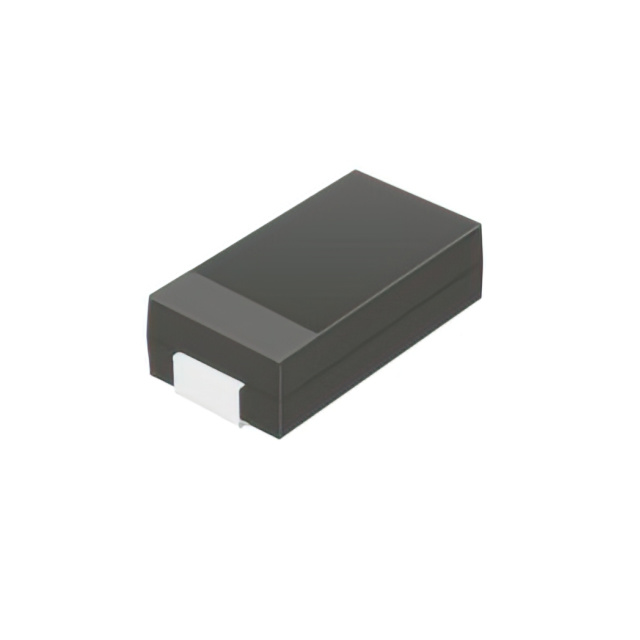

| Part Number | 3.0SMCJ78A | 3.0SMCJ78A | 3.0SMCJ78A-HF | 3.0SMCJ78AQ-13 |
| Manufacturer | Diotec Semiconductor | SMC Diode Solutions | Comchip Technology | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TVS DIODE 78VWM 126VC DO-214AB | TVS DIODE 78VWM 126VC SMC | DIODE TVS 78V 3000W SMC UNI-DIR | TRANSIENT VOLTAGE SUPPRESSOR SMC |
| Series | Diotec Semiconductor | SMC Diode Solutions | Comchip Technology | Diodes Incorporated |
| Packaging | Bulk | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
