3-1462039-4
lmages are for reference only.3-1462039-4
RELAY GEN PURPOSE DPDT 2A 12V
Datasheet-
33,525 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Telecom Relay DPDT (2 Form C) Surface Mount
3-1462039-4
| Category | Relays - Signal Relays-Up to 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | IM, AXICOM |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Surface Mount |
| Coil Voltage | 12VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 2 A |
| Switching Voltage | 250VAC, 220VDC - Max |
| Load - Max Switching | 500VA, 440W |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | J Lead |
| Seal Rating | Sealed - Hermetically |
| Coil Insulation | - |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 3 ms |
| Release Time | 3 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Palladium (Pd), Ruthenium (Ru), Gold (Au) |
| Approval Agency | UR |
| Relay Type | Telecom |
| Grade | - |
| Qualification | - |
| Base Product Number | 1462039 |
| Coil Current | 11.7 mA |
| Coil Resistance | 1.029 kOhms |
| Product Attribute |  |
 |
 |
 |

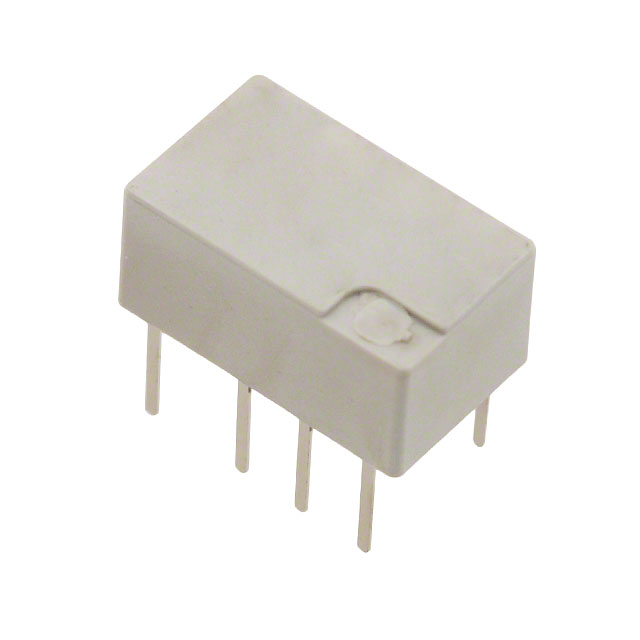

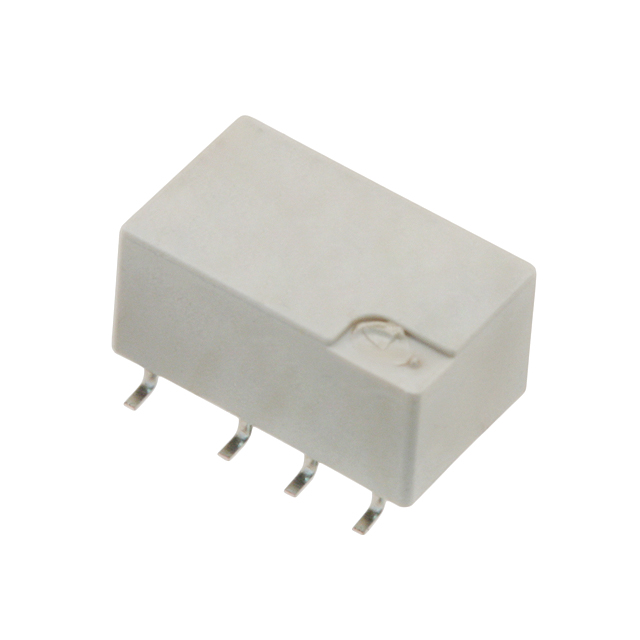

| Part Number | 3-1462039-0 | 3-1462039-1 | 3-1462039-2 | 3-1462037-1 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RELAY TELECOM DPDT 2A 5V | RELAY TELECOM DPDT 2A 12V | RELAY TELECOM DPDT 2A 12V | RELAY TELECOM DPDT 2A 4.5V |
| Series | IM, AXICOM | IM, AXICOM | IM, AXICOM | IM, AXICOM |
| Packaging | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
