30ETH06
lmages are for reference only.30ETH06
DIODE GEN PURP 600V 30A TO220AC
DatasheetTO-220-2
59,729 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode 600 V 30A Through Hole TO-220AC
30ETH06
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | FRED Pt® |
| Packaging | Tube |
| RoHS Status | RoHS non-compliant |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Current - Average Rectified (Io) | 30A |
| Voltage - Forward (Vf) (Max) @ If | 2.6 V @ 30 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 35 ns |
| Current - Reverse Leakage @ Vr | 50 µA @ 600 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-2 |
| Supplier Device Package | TO-220AC |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Base Product Number | 30ETH06 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
|

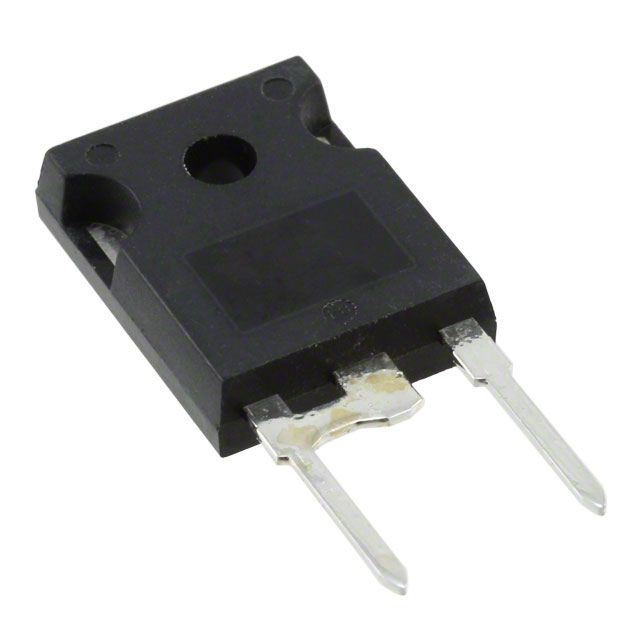

| Part Number | 30CPF04 | 30EPF12 | 30CPF12 | 3A100H |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Taiwan Semiconductor Corporation |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | DIODE GEN PURP 400V 30A TO247AC | DIODE GP 1.2KV 30A TO247AC | DIODE GEN PURP 1.2KV 30A TO247AC | DIODE GEN PURP 3A DO204AC |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
