310-93-164-41-105000
lmages are for reference only.310-93-164-41-105000
CONN RCPT 64POS 0.1 GOLD SMD
Datasheet-
77,958 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
64 Position Receptacle Connector 0.100" (2.54mm) Surface Mount Gold
310-93-164-41-105000
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Receptacles-Female Sockets |
| Manufacturer | Mill-Max Manufacturing Corp. |
| Series | 310 |
| Packaging | Tube |
| RoHS Status | RoHS non-compliant |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 64 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Insulation Color | Black |
| Insulation Height | 0.220" (5.60mm) |
| Contact Length - Post | - |
| Operating Temperature | -55°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin-Lead |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | 3A |
| Voltage Rating | 100V, 150VDC |
| Applications | - |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Contact Shape | Circular |
| Contact Material | Beryllium Copper |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) |
| Base Product Number | 310-93 |
| Product Attribute |  |
 |
|
|

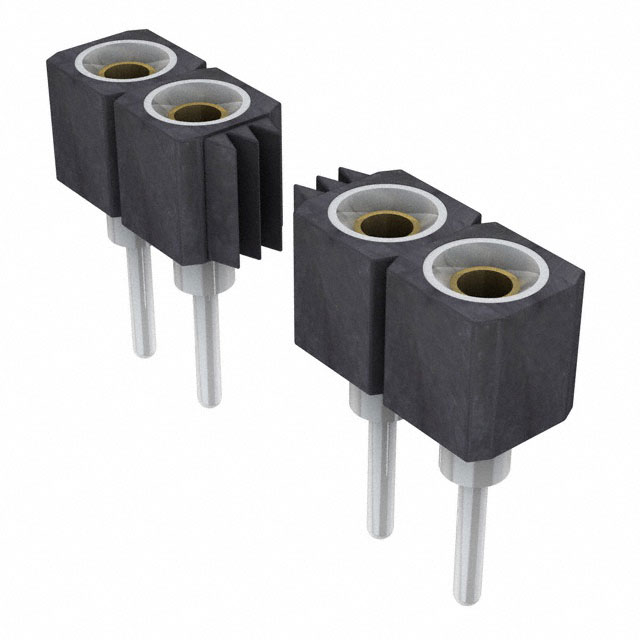

| Part Number | 310-93-164-41-001000 | 310-93-164-41-107000 | 310-93-164-61-001000 | 310-93-164-61-105000 |
| Manufacturer | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | ||
| Description | CONN RCPT 64POS 0.1 GOLD PCB | CONN RCPT 64POS 0.1 GOLD SMD | CONN RCPT 64POS 0.1 GOLD PCB | CONN RCPT 64POS 0.1 GOLD SMD |
| Series | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. | Mill-Max Manufacturing Corp. |
| Packaging | Tube | Tube | Tube | Tube |
