322-SVW-DS/12
lmages are for reference only.322-SVW-DS/12
PLUG-IN TERMINAL STRIP SCREW CON
Datasheet-
90,544 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
12 Position Wire to Board Terminal Block Vertical with Board 0.394" (10.00mm) Through Hole
322-SVW-DS/12
| Category | Connectors, Interconnects - Terminal Blocks - Wire to Board |
| Manufacturer | WECO Electrical Connectors Inc. |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Number of Levels | 1 |
| Positions Per Level | 12 |
| Pitch | 0.394" (10.00mm) |
| Mating Orientation | Vertical with Board |
| Current | 20 A |
| Voltage | 300 V |
| Wire Gauge | 12-18 AWG |
| Mounting Type | Through Hole |
| Wire Termination | Screw - Leaf Spring, Wire Guard |
| Features | - |
| Color | Natural |
| Operating Temperature | -40°C ~ 100°C |
| Housing Material | Polyamide (PA), Nylon |
| Contact Material - Plating | Brass - Tin Plated |
| Clamp Material - Plating | Brass - Tin Plated |
| Screw Material - Plating | Steel - Zinc Plated |
| Torque - Screw | 0.51 Nm (4.5 Lb-In) |
| Screw Thread | M3 |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

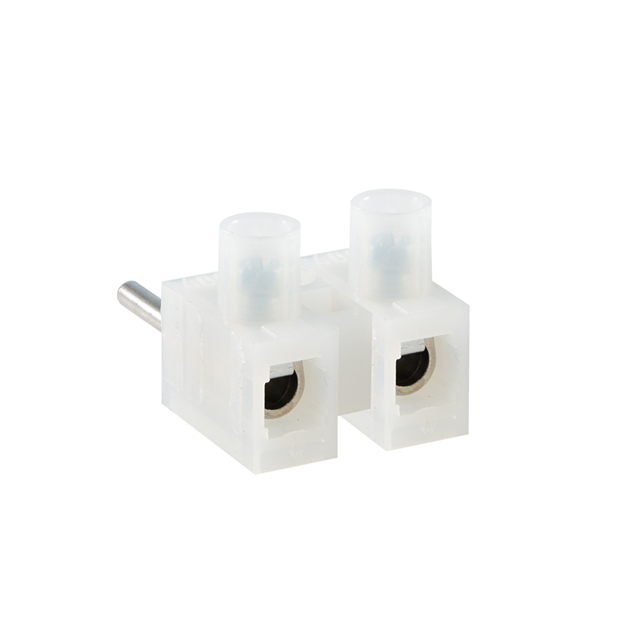

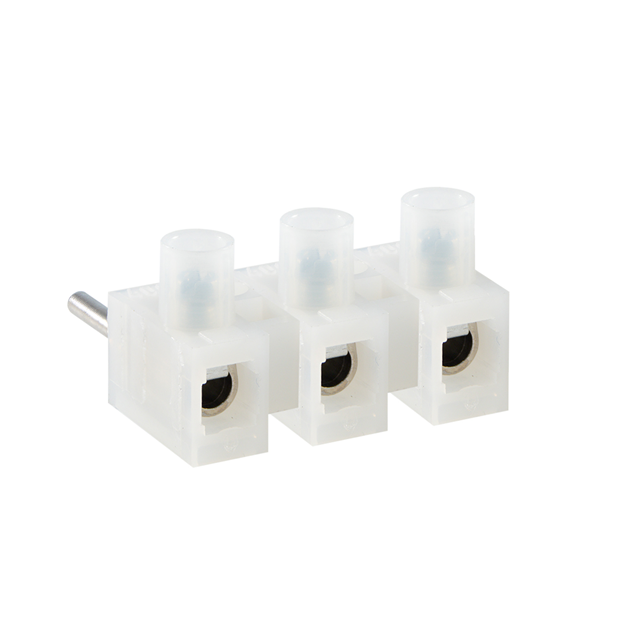

| Part Number | 322-SVW-DS/02 | 322-SVW-DS/03 | 322-SVW-DS/04 | A-TB762-VJ05H |
| Manufacturer | WECO Electrical Connectors Inc. | WECO Electrical Connectors Inc. | WECO Electrical Connectors Inc. | Assmann WSW Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | PLUG-IN TERMINAL STRIP SCREW CON | PLUG-IN TERMINAL STRIP SCREW CON | PLUG-IN TERMINAL STRIP SCREW CON | TERM BLK 5P SIDE ENT 7.62MM PCB |
| Series | - | - | - | A-TB762 |
| Packaging | Bulk | Bulk | Bulk | Bulk |
