3260-8S2(56)

3260-8S2(56)

3260-8S2(56)

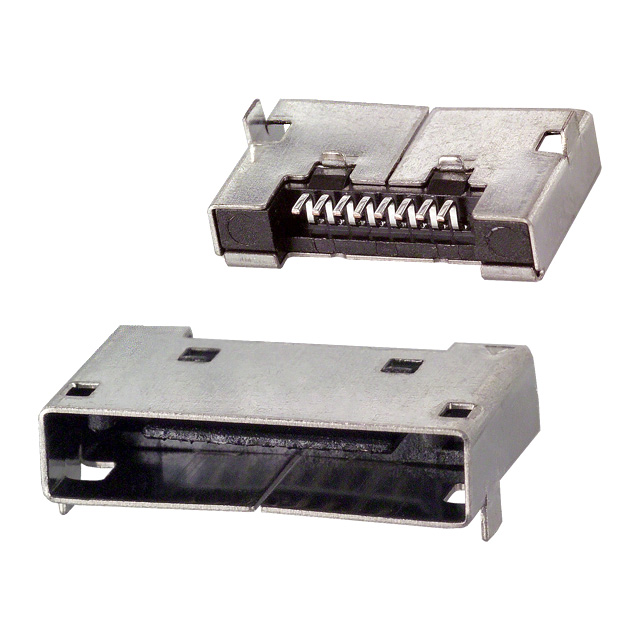

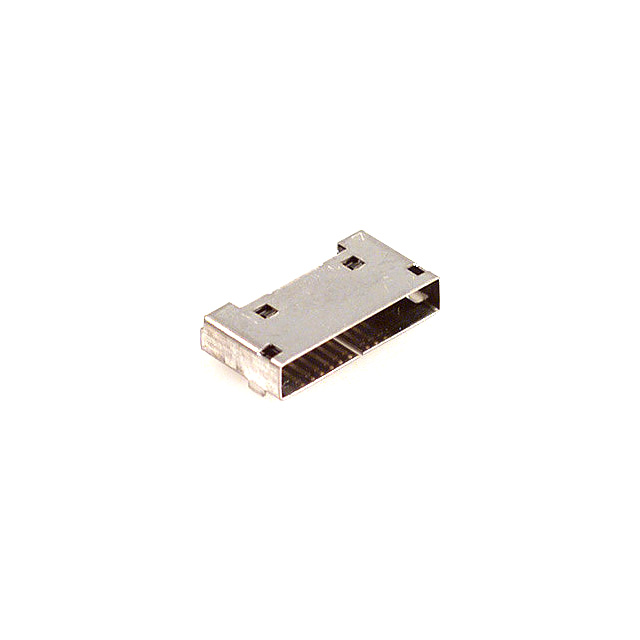

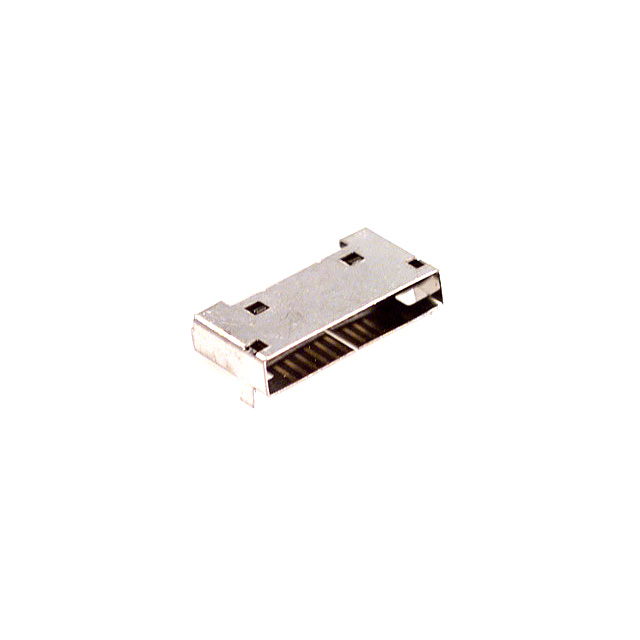

lmages are for reference only.
  • Part Number

    3260-8S2(56)

  • Manufacturer

    Hirose Electric Co Ltd
  • Description

    CONN RCPT 8P 0.031 GOLD SMD R/A

  • Datasheet

    DatasheetDatasheet
  • Package

    -

  • In Stock

    11,696 piece(s)

  • Unit Price

    Please Contact Us

  • Lead Time

    Can Ship Immediately

Request for Quotation

  • Payment Methods

  • Delivery Services

8 Position Receptacle Connector 0.031" (0.80mm) Surface Mount, Right Angle Gold

Quick Inquiry

3260-8S2(56)

Get the Price Now!

Specifications

Category Connectors, Interconnects - Rectangular Connectors - Headers-Receptacles-Female Sockets
Manufacturer Hirose Electric Co Ltd
Series 3200
Packaging Tape & Reel (TR)
RoHS Status RoHS Compliant
Connector Type Receptacle
Contact Type Center Strip Contact
Style Board to Cable/Wire
Number of Positions 8
Number of Positions Loaded All
Pitch - Mating 0.031" (0.80mm)
Number of Rows 1
Row Spacing - Mating -
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Insulation Color Black
Insulation Height 0.114" (2.90mm)
Contact Length - Post -
Operating Temperature -
Material Flammability Rating UL94 V-0
Contact Finish - Post Gold
Mated Stacking Heights -
Ingress Protection -
Features Board Guide, Shielded
Current Rating (Amps) 500mA
Voltage Rating 125VAC
Applications General Purpose
Insulation Material Polyphenylene Sulfide (PPS)
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 1.25µin (0.032µm)
Base Product Number 3260

Parts with Similar Specifications

Product Attribute 3260-8S2(55) 3260-8S1 3260-8S1(55) 3260-8S1(56)
Part Number 3260-8S2(55) 3260-8S1 3260-8S1(55) 3260-8S1(56)
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
RoHS Status RoHS Compliant RoHS non-compliant ROHS3 Compliant RoHS Compliant
Description CONN RCPT 8P 0.031 GOLD SMD R/A CONN RCPT 8P 0.031 GOLD SMD R/A CONN RCPT 8P 0.031 GOLD SMD R/A CONN RCPT 8P 0.031 GOLD SMD R/A
Series Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Packaging Tray Bulk Tray Tape & Reel (TR)
