33A-015D
lmages are for reference only.33A-015D
SENS 15PSID 0.19/0.13" 0.1V TO8
DatasheetTO-8 Style, 12 Leads
10,456 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor 15PSI (103.42kPa) Differential Male - 0.19" (4.78mm) Tube, Male - 0.13" (3.18mm) Tube 0 mV ~ 100 mV TO-8 Style, 12 Leads
33A-015D
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | TE Connectivity Measurement Specialties |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | 33A |
| Applications | Board Mount |
| Pressure Type | Differential |
| Operating Pressure | 15PSI (103.42kPa) |
| Output Type | Wheatstone Bridge |
| Output | 0 mV ~ 100 mV |
| Accuracy | ±0.2% |
| Voltage - Supply | - |
| Port Size | Male - 0.19" (4.78mm) Tube, Male - 0.13" (3.18mm) Tube |
| Port Style | Barbless |
| Features | Temperature Compensated |
| Termination Style | PC Pin |
| Maximum Pressure | 45PSI (310.26kPa) |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | TO-8 Style, 12 Leads |
| Supplier Device Package | TO-8 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|

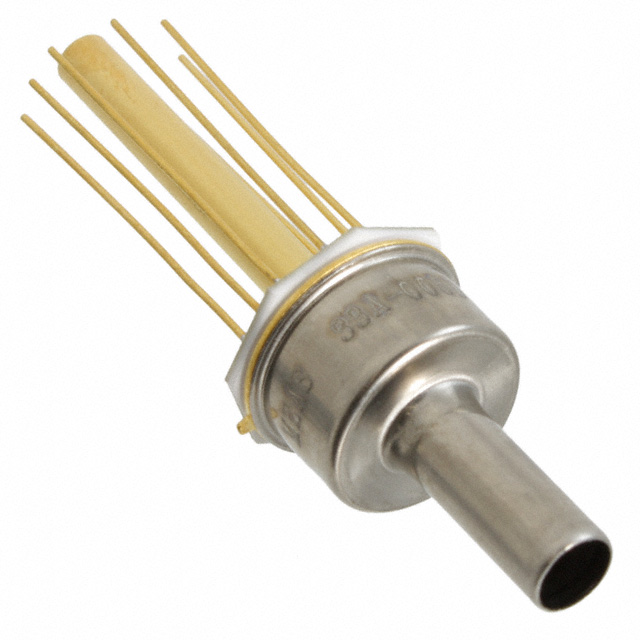

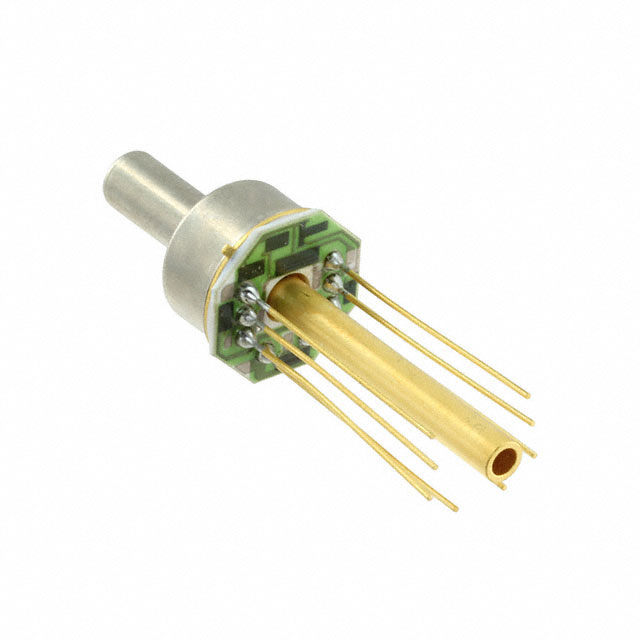

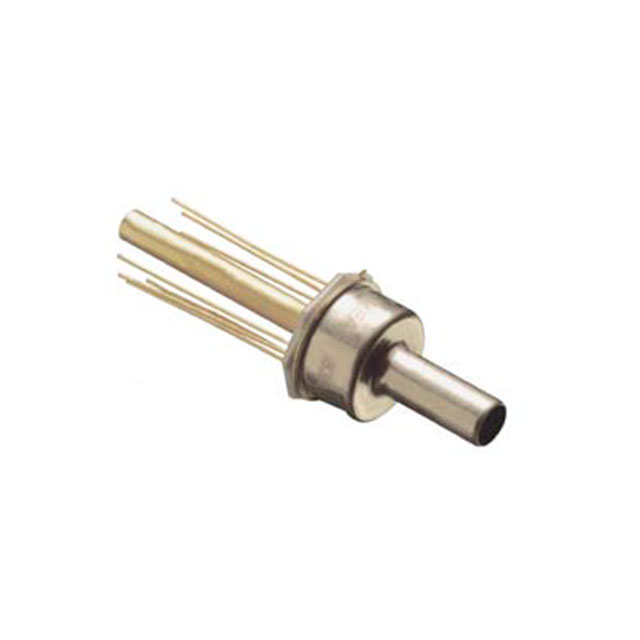

| Part Number | 33A-001D | 33A-002D | 33A-005D | 33A-005D |
| Manufacturer | TE Connectivity Measurement Specialties | TE Connectivity Measurement Specialties | TE Connectivity Measurement Specialties | TE Connectivity Measurement Specialties |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SENSOR 1PSID 0.19/0.13" 0.1V TO8 | SENSOR 2PSID 0.19/0.13" 0.1V TO8 | SENSOR 5PSID 0.19/0.13" 0.1V TO8 | SENSOR 5PSID 0.19/0.13" 0.1V TO8 |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Bulk | Bulk |
