3403.0158.24
lmages are for reference only.3403.0158.24
FUSE BRD MNT 160MA 250VAC 125VDC
Datasheet2-SMD, Square End Block
82,807 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
160 mA 250 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
3403.0158.24
| Category | Circuit Protection - Fuses - |
| Manufacturer | SCHURTER Inc. |
| Series | UMT 250 |
| Packaging | Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Surface Mount |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Current Rating (Amps) | 160 mA |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 125 V |
| Response Time | Slow Blow |
| Package / Case | 2-SMD, Square End Block |
| Breaking Capacity @ Rated Voltage | 200A AC, 35A DC |
| Melting I²t | 0.057 |
| Approval Agency | CQC, cURus, KC, VDE |
| Operating Temperature | -55°C ~ 125°C |
| Color | - |
| Size / Dimension | 0.398" L x 0.118" W x 0.118" H (10.10mm x 3.00mm x 3.00mm) |
| Base Product Number | 3403.0158 |
| DC Cold Resistance | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | 3403.0011.24 | 3403.0012.24 | 3403.0013.24 | 3403.0014.24 |
| Manufacturer | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

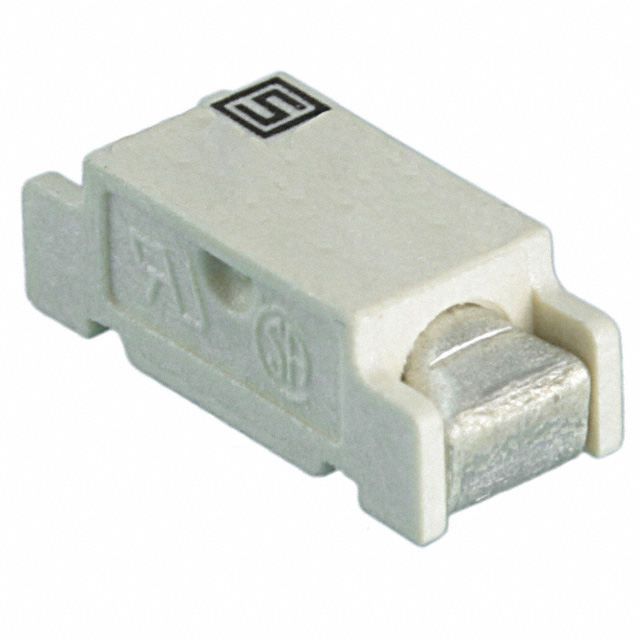

| Description | FUSE BRD MNT 315MA 250VAC/VDC | FUSE BRD MNT 400MA 250VAC/VDC | FUSE BRD MNT 500MA 250VAC/VDC | FUSE BRD MNT 630MA 250VAC/VDC |
| Series | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. |
| Packaging | Cut Tape (CT) | Cut Tape (CT) | Cut Tape (CT) | Cut Tape (CT) |
