380LX561M100H012
lmages are for reference only.380LX561M100H012
CAP ALUM 560UF 20% 100V SNAP TH
DatasheetRadial, Can - Snap-In
36,767 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
560 µF 100 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 400mOhm @ 120Hz 3000 Hrs @ 85°C
380LX561M100H012
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Cornell Dubilier Knowles |
| Series | 380LX |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 400mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.3 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Base Product Number | - |
| Impedance | - |
| Product Attribute |  |
 |
 |
 |

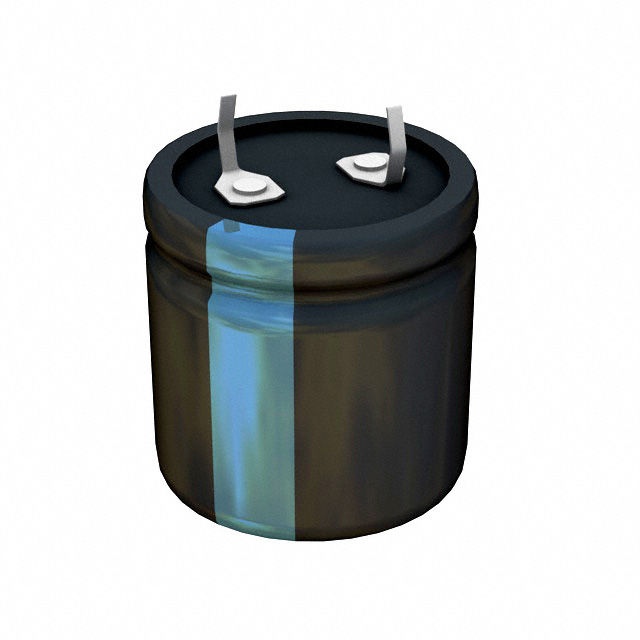

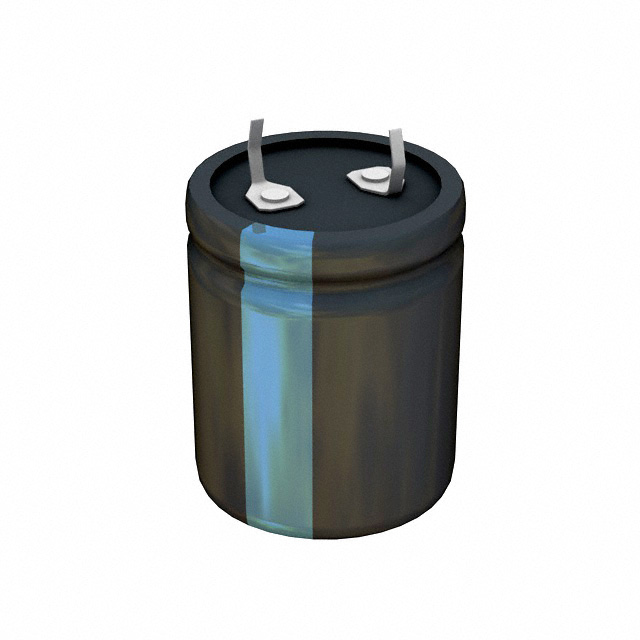

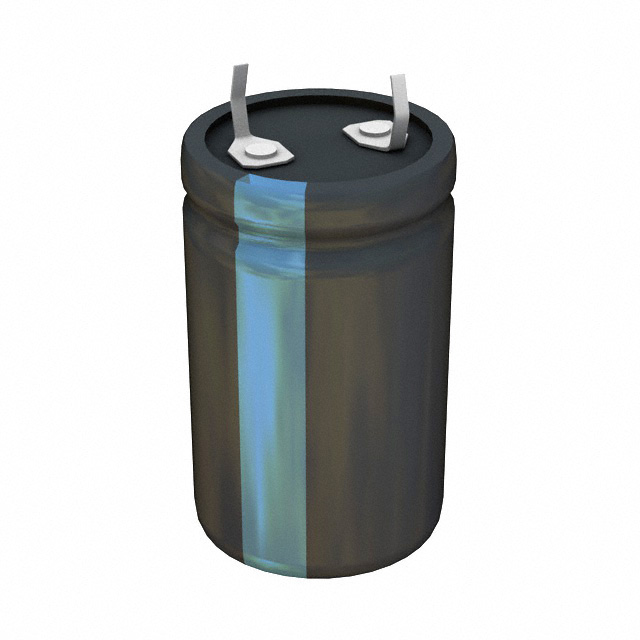

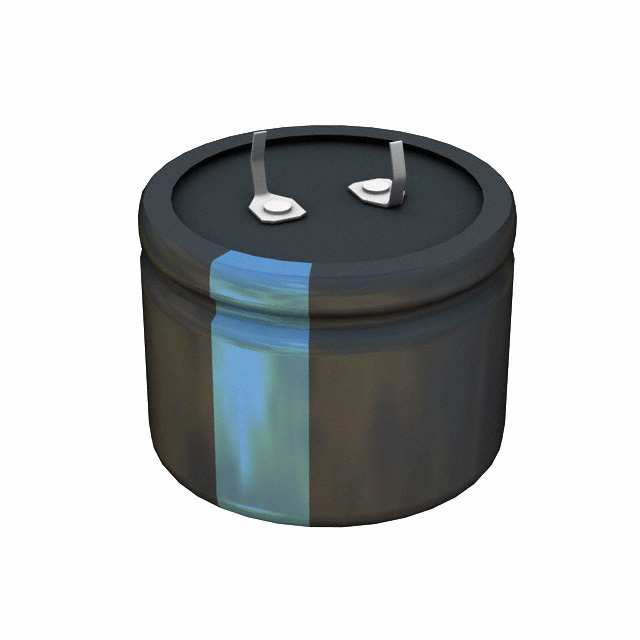

| Part Number | 380LX561M160A202 | 380LX561M160H032 | 380LX561M160J012 | 380LX561M160J022 |
| Manufacturer | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 560UF 20% 160V SNAP TH | CAP ALUM 560UF 20% 160V SNAP TH | CAP ALUM 560UF 20% 160V SNAP TH | CAP ALUM 560UF 20% 160V SNAP TH |
| Series | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| Packaging | Bulk | Bulk | Bulk | Bulk |
