3HC-50
lmages are for reference only.Payment Methods
Delivery Services

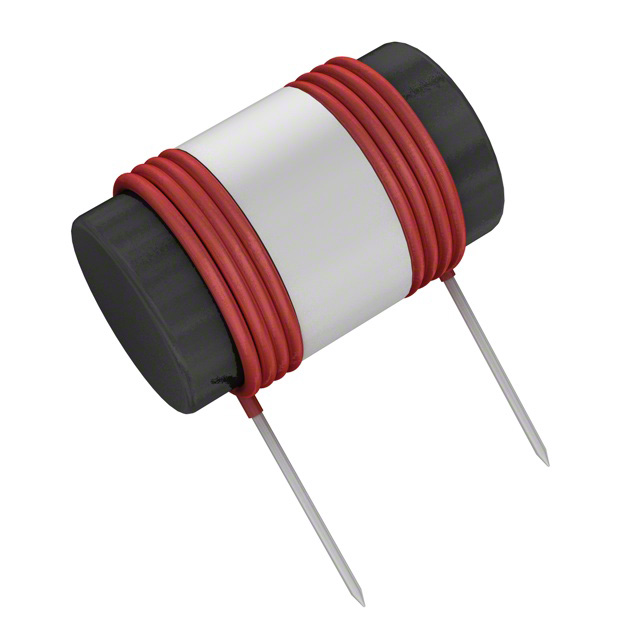

50 µH Unshielded Drum Core, Wirewound Inductor 3 A 50mOhm Max Radial, Horizontal Cylinder (Open)
3HC-50
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Delevan |
| Series | HC |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 50 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 3 A |
| Current - Saturation (Isat) | 12A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 50mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Horizontal Cylinder (Open) |
| Supplier Device Package | - |
| Size / Dimension | 0.812" Dia x 1.125" L (20.62mm x 28.58mm) |
| Height - Seated (Max) | - |
| Base Product Number | - |
| Product Attribute |  |
|
 |
|
| Part Number | 3HC-5 | 3HC-50 | 3HC-500 | 3HC-500 |
| Manufacturer | Delevan | Delevan | Delevan | Delevan |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | FIXED IND 5UH 3A 15 MOHM TH | FIXED IND 50UH 3A 50 MOHM TH | FIXED IND 500UH 3A 130 MOHM TH | FIXED IND 500UH 3A 130 MOHM TH |
| Series | Delevan | Delevan | Delevan | Delevan |
| Packaging | Bulk | Bulk | Bulk | Bulk |
