3N254-E4/45
lmages are for reference only.3N254-E4/45
BRIDGE RECT 1PHASE 100V 2A KBPM
Datasheet4-SIP, KBPM
15,748 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Bridge Rectifier Single Phase Standard 100 V Through Hole KBPM
3N254-E4/45
| Category | Discrete Semiconductor Products - Diodes - Bridge Rectifiers |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Diode Type | Single Phase |
| Technology | Standard |
| Voltage - Peak Reverse (Max) | 100 V |
| Current - Average Rectified (Io) | 2 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 3.14 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 100 V |
| Operating Temperature | -55°C ~ 165°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP, KBPM |
| Supplier Device Package | KBPM |
| Base Product Number | 3N254 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

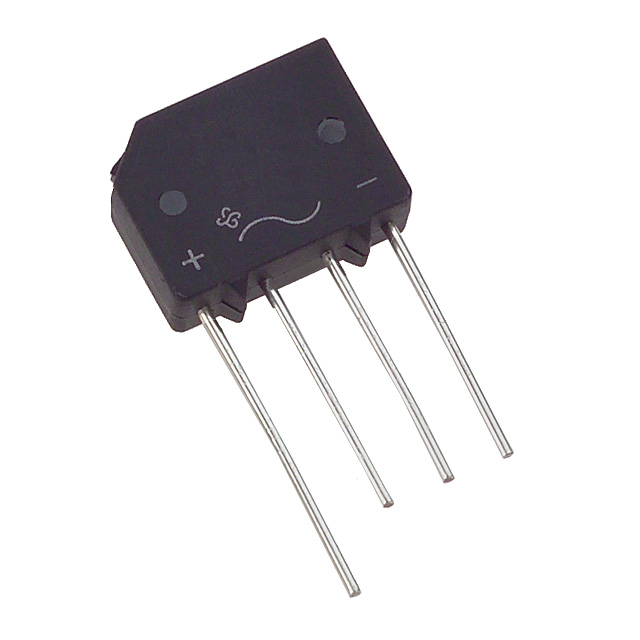

| Part Number | 3N254-E4/51 | 3N254-E4/72 | 3N254 | 3N254-M4/51 |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | onsemi | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | BRIDGE RECT 1PHASE 100V 2A KBPM | BRIDGE RECT 1PHASE 100V 2A KBPM | BRIDGE RECT 1PHASE 100V 2A KBPM | BRIDGE RECT 1PHASE 100V 2A KBPM |
| Series | - | - | - | - |
| Packaging | Tray | Box | Tube | Tray |
