4-1393808-1

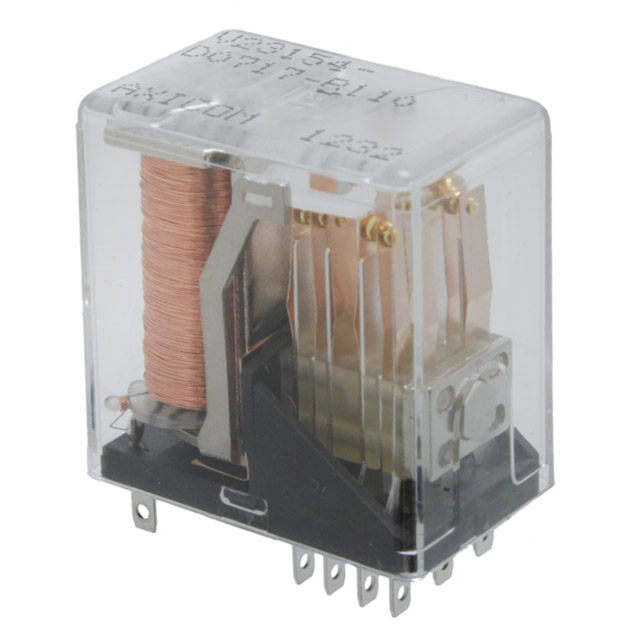

lmages are for reference only.4-1393808-1
RELAY GEN PURPOSE DPDT 5A 9V
Datasheet-
51,144 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay DPDT (2 Form C) 9VDC Coil Socketable
4-1393808-1
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | V23154, AXICOM |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Socketable |
| Coil Voltage | 9VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 5 A |
| Switching Voltage | 125VAC, 150VDC - Max |
| Load - Max Switching | 625VA, 750W |
| Coil Current | 16.7 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Plug In |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 4.8 VDC |
| Must Release Voltage | - |
| Operate Time | 7.5 ms |
| Release Time | 3 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver (Ag) |
| Approval Agency | - |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 110 Ohms |
| Base Product Number | V23154 |
| Product Attribute |  |
 |
|
|
| Part Number | 4-1393808-7 | 4-1393808-8 | 4-1393800-2 | 4-1393800-5 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RELAY GEN PURPOSE DPDT 5A 10V | RELAY GEN PURPOSE | RELAY GEN PURPOSE DPDT 15A 12V | RELAY GEN PURPOSE DPDT 15A 24V |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Packaging | Bulk | Bulk | Tray | Bulk |
