4 INCH-D-CGRADE-MINI
lmages are for reference only.4 INCH-D-CGRADE-MINI
SENSOR 0.15PSID 0.18" .025V
Datasheet4-SIP Module
60,440 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor 0.15PSI (1kPa) Differential Male - 0.18" (4.57mm) Tube, Dual 0 mV ~ 25 mV (12V) 4-SIP Module
4 INCH-D-CGRADE-MINI
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Amphenol All Sensors Corporation |
| Series | ACPC |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Base Product Number | D-CGRADE-MINI |
| Applications | Board Mount |
| Pressure Type | Differential |
| Operating Pressure | 0.15PSI (1kPa) |
| Output Type | Wheatstone Bridge |
| Output | 0 mV ~ 25 mV (12V) |
| Accuracy | ±1% |
| Voltage - Supply | 16V |
| Port Size | Male - 0.18" (4.57mm) Tube, Dual |
| Port Style | Barbless |
| Features | Temperature Compensated |
| Termination Style | PC Pin |
| Maximum Pressure | 3PSI (20.68kPa) |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP Module |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
 |

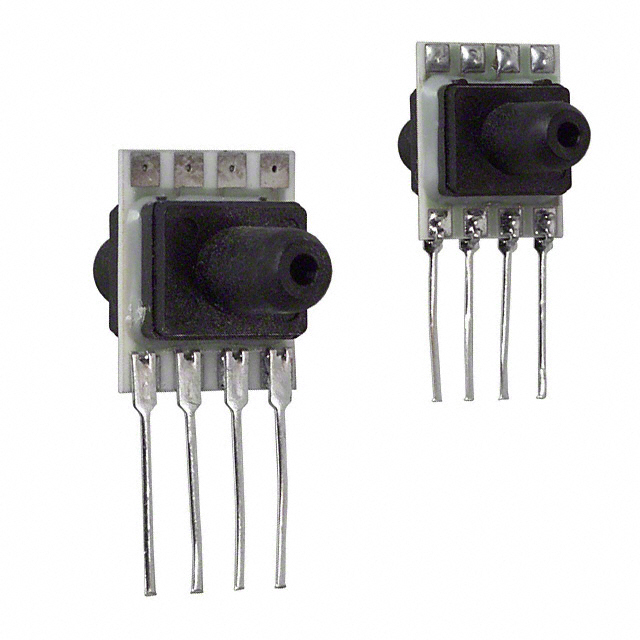

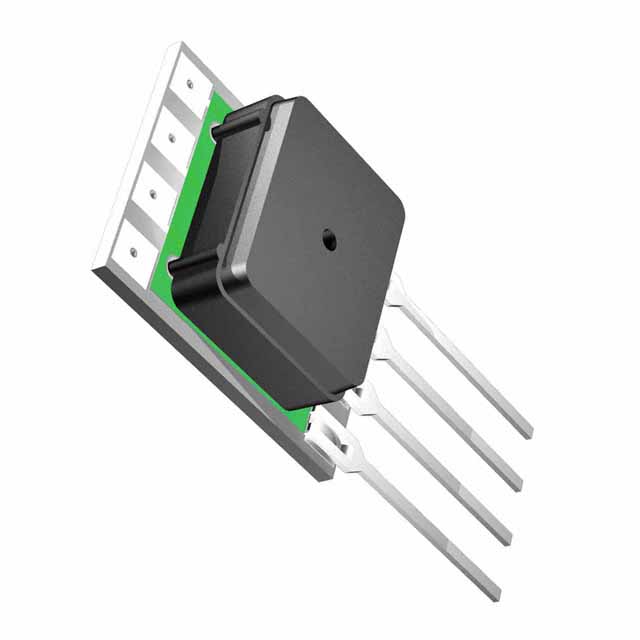

| Part Number | 4 INCH-D-CGRADE-MINI | 4 INCH-D-CGRADE-MV | 4 INCH-D-HGRADE-MINI | 4 INCH-G-CGRADE-MINI |
| Manufacturer | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | SENSOR 0.15PSID 0.18" .025V | SENSOR 0.15PSID 0.19" .04V | SENSOR 0.15PSID 0.18" .025V | SENSOR 0.15PSIG .025V |
| Series | ACPC | AXCX | ACPC | ACPC |
| Packaging | Tube | Tube | Tube | Tube |
