Part Number
40IMX4-12-8G
Manufacturer
Bel Power SolutionsDescription
DC DC CONVERTER 12V 4W
Datasheet
DatasheetPackage
24-DIP Module
In Stock
52,444 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

40IMX4-12-8G

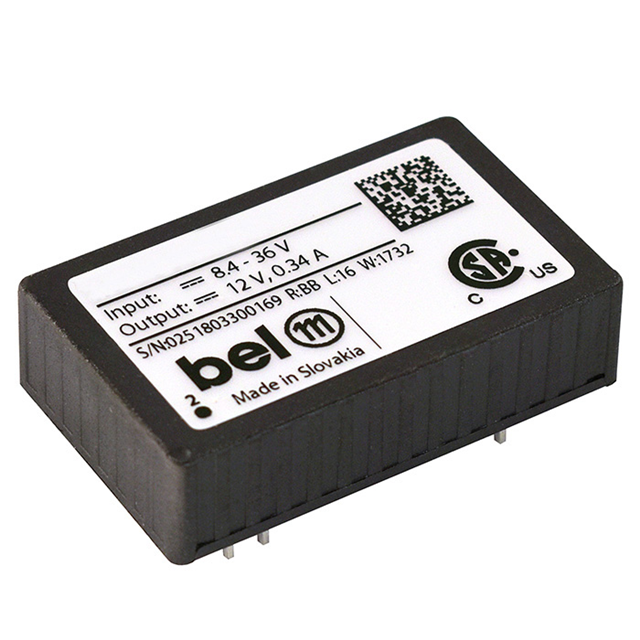

lmages are for reference only.40IMX4-12-8G
DC DC CONVERTER 12V 4W
Datasheet24-DIP Module
52,444 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods

Delivery Services

Isolated Module, Conformal Coated DC DC Converter 1 Output 12V 340mA 16.8V - 75V Input
40IMX4-12-8G

| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Bel Power Solutions |
| Series | Melcher IMX4 (4W) |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module, Conformal Coated |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 16.8V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 340mA |
| Power (Watts) | 4 W |
| Applications | ITE (Commercial), Railway |
| Features | OCP, OTP, OVP, SCP |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 82% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 24-DIP Module |
| Size / Dimension | 1.30" L x 0.79" W x 0.33" H (33.0mm x 20.1mm x 8.4mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | 40IMX4 |
| Voltage - Isolation | 1.5 kV |

| Product Attribute | ![]() |
![]() |
![]() |
![]() |
| Part Number | 40IMX4-1212-8 | 40IMX4-1212-8G | 40IMX4-03-8G | 40IMX4-05-8G |
| Manufacturer | Bel Power Solutions | Bel Power Solutions | Bel Power Solutions | Bel Power Solutions |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER +/-12V 4W | DC DC CONVERTER +/-12V 4W | DC DC CONVERTER 3.3V 4W | DC DC CONVERTER 5V 4W |
| Series | Bel Power Solutions | Bel Power Solutions | Bel Power Solutions | Bel Power Solutions |
| Packaging | Bulk | Bulk | Bulk | Tube |
