4206-020LF

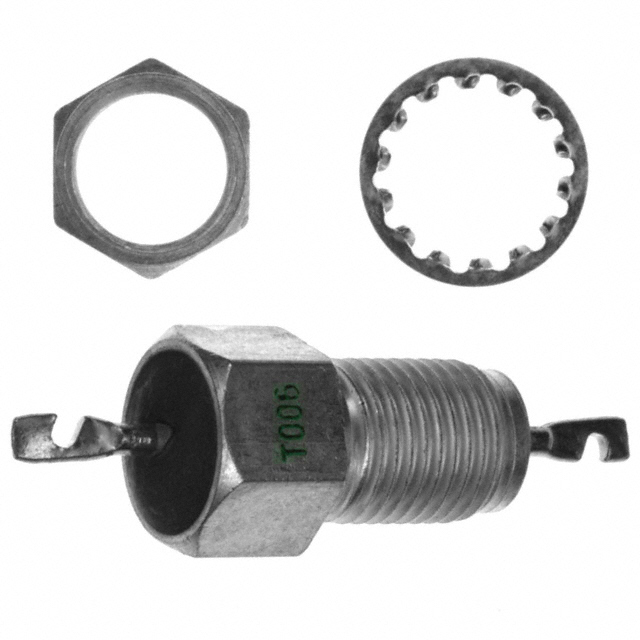

lmages are for reference only.4206-020LF
FILTER LC(PI) 1500PF/3000PF CHAS
DatasheetAxial, Bushing
79,998 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel C = 1500pF, 3000pF 25 A Axial, Bushing
4206-020LF
| Category | Filters - EMI-RFI Filters LC-RC Networks - |
| Manufacturer | Tusonix a Subsidiary of CTS Electronic Components |
| Series | 4200 |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Type | Low Pass |
| Filter Order | 3rd |
| Technology | LC (Pi) |
| Center / Cutoff Frequency | - |
| Attenuation Value | 45dB @ 100MHz |
| Resistance - Channel (Ohms) | - |
| Current | 25 A |
| Values | C = 1500pF, 3000pF |
| ESD Protection | No |
| Operating Temperature | - |
| Applications | General Purpose |
| Voltage - Rated | 330V |
| Mounting Type | Chassis Mount |
| Package / Case | Axial, Bushing |
| Size / Dimension | 0.375" Dia x 0.687" L (9.53mm x 17.45mm) |
| Height | - |
| Number of Channels | 1 |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
|
|
|
| Part Number | 4206-020 | 4206-020 | 4206-020LF | 4206-001 |
| Manufacturer | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS Compliant | RoHS non-compliant |
| Description | FILTER LC(PI) 1500PF/3000PF CHAS | FILTER LC(PI) 1500PF/3000PF CHAS | FILTER LC(PI) 1500PF/3000PF CHAS | FILTER LC(PI) 3000PF CHASSIS |
| Series | 4200 | 4200 | 4200 | 4200 |
| Packaging | Bulk | Bulk | Bulk | Bulk |
