4301F1/5-A

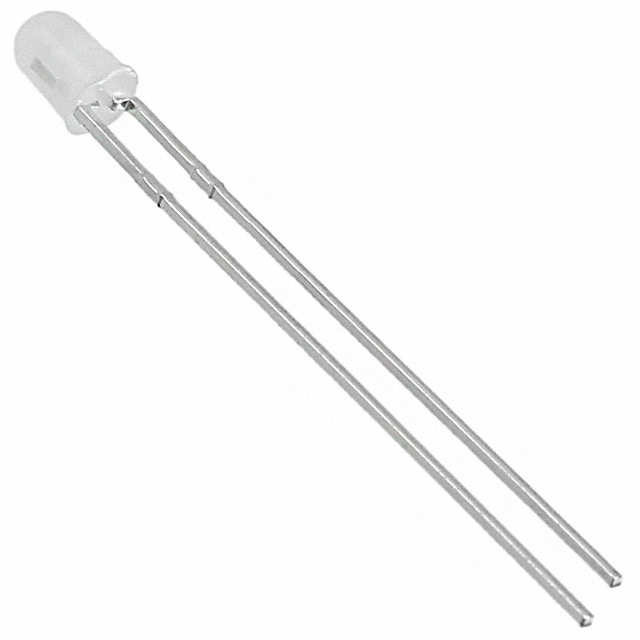

lmages are for reference only.4301F1/5-A
LED GREEN/RED DIFFUSED T-1 T/H
DatasheetRadial
40,353 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Green, Red LED Indication - Discrete 2.1V Green, 1.8V Red Radial
4301F1/5-A
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Visual Communications Company - VCC |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Color | Green, Red |
| Configuration | Bidirectional |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 3.7mcd Green, 12.6mcd Red |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
| Voltage - Forward (Vf) (Typ) | 2.1V Green, 1.8V Red |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 100° |
| Mounting Type | Through Hole |
| Wavelength - Dominant | - |
| Wavelength - Peak | 565nm Green, 660nm Red |
| Features | - |
| Package / Case | Radial |
| Supplier Device Package | T-1 |
| Size / Dimension | - |
| Height (Max) | - |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |
| Part Number | 4301F1/5 | 4301F11/17 | 4301F25/27 | 4301H1/1 |
| Manufacturer | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED GREEN/RED DIFFUSED T-1 T/H | LED RED/YLW DIFFUSED T-1 T/H | LED GRN/YLW DIFFUSED T-1 T/H | LED RED DIFFUSED T-1 3/4 T/H |
| Series | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC |
| Packaging | Bulk | Bulk | Bulk | Bulk |
