4425-015D
lmages are for reference only.4425-015D
SENSOR 15PSID 0.13" .09V
Datasheet6-DIP Module
21,795 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor 15PSI (103.42kPa) Differential Male - 0.13" (3.4mm) Tube, Dual 0 mV ~ 90 mV (12V) 6-DIP Module
4425-015D
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | TE Connectivity Measurement Specialties |
| Series | 4425 |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | 4425 |
| Applications | Board Mount |
| Pressure Type | Differential |
| Operating Pressure | 15PSI (103.42kPa) |
| Output Type | Wheatstone Bridge |
| Output | 0 mV ~ 90 mV (12V) |
| Accuracy | ±0.25% |
| Voltage - Supply | 12V ~ 20V |
| Port Size | Male - 0.13" (3.4mm) Tube, Dual |
| Port Style | Barbed |
| Features | Temperature Compensated |
| Termination Style | PC Pin |
| Maximum Pressure | 45PSI (310.26kPa) |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
 |

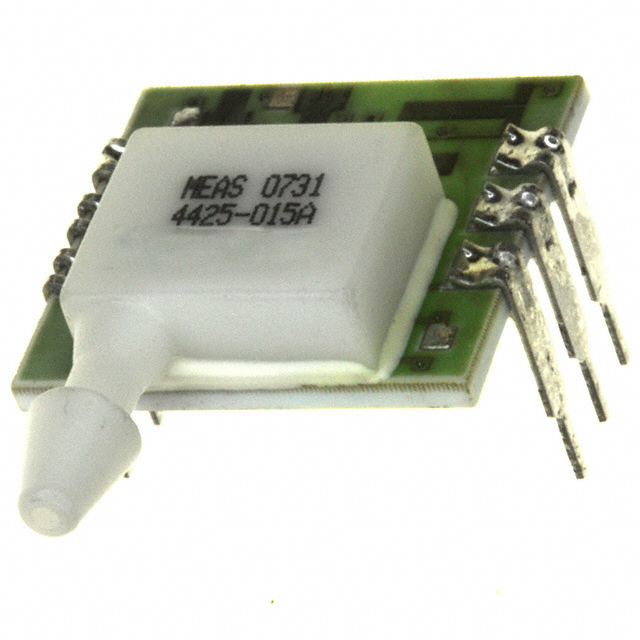

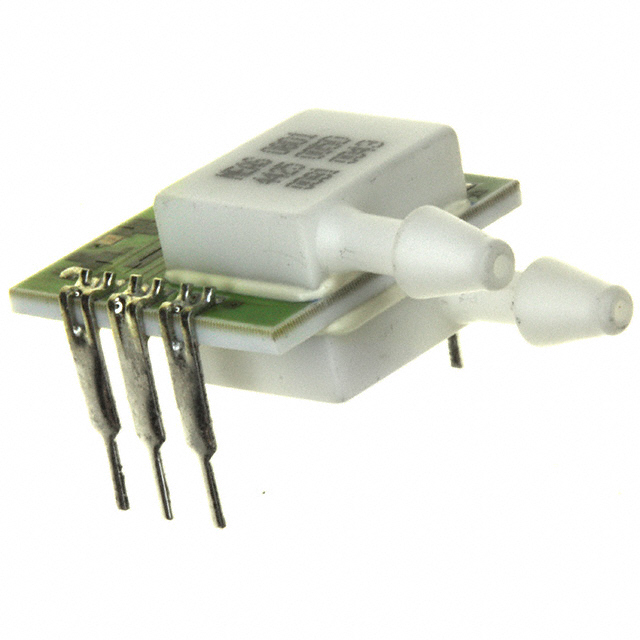

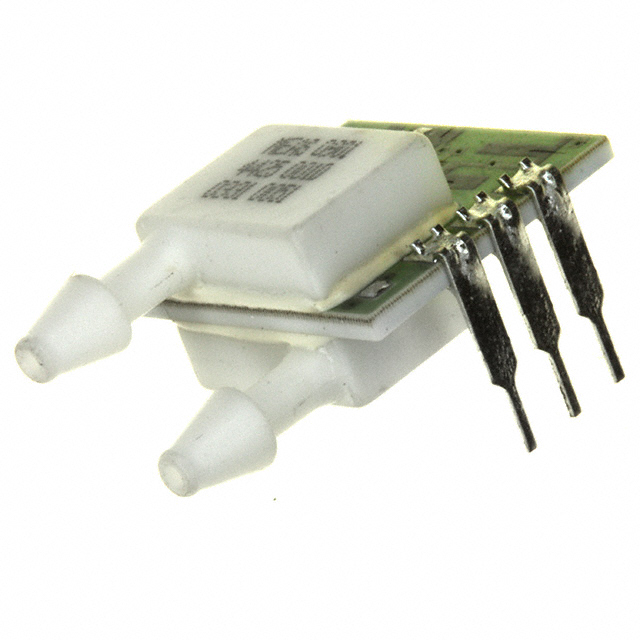

| Part Number | 4425-015A | 4425-015A | 4425-001D | 4425-005D |
| Manufacturer | TE Connectivity Measurement Specialties | TE Connectivity Measurement Specialties | TE Connectivity Measurement Specialties | TE Connectivity Measurement Specialties |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant |
| Description | SENSOR 15PSIA 0.13" .09V | SENSOR 15PSIA 0.13" .09V | SENSOR 1PSID 0.13" .018V | SENSOR 5PSID 0.13" .06V |
| Series | 4425 | 4425 | 4425 | 4425 |
| Packaging | Tray | Tray | Tray | Tray |
