4700BP07B0600001T
lmages are for reference only.4700BP07B0600001T
N79 5G MINI BPF
Datasheet0402 (1005 Metric), 6 PC Pad
61,661 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
4.7GHz Center Band Pass Ceramic Filter 600 MHz 50Ohm 0402 (1005 Metric), 6 PC Pad
4700BP07B0600001T
| Category | Filters - Ceramic Filters - |
| Manufacturer | Johanson Technology Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric), 6 PC Pad |
| Frequency | 4.7GHz Center |
| Impedance | 50Ohm |
| Bandwidth | 600 MHz |
| Insertion Loss | 1.5dB |
| Filter Type | Band Pass |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height (Max) | 0.014" (0.35mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
 |

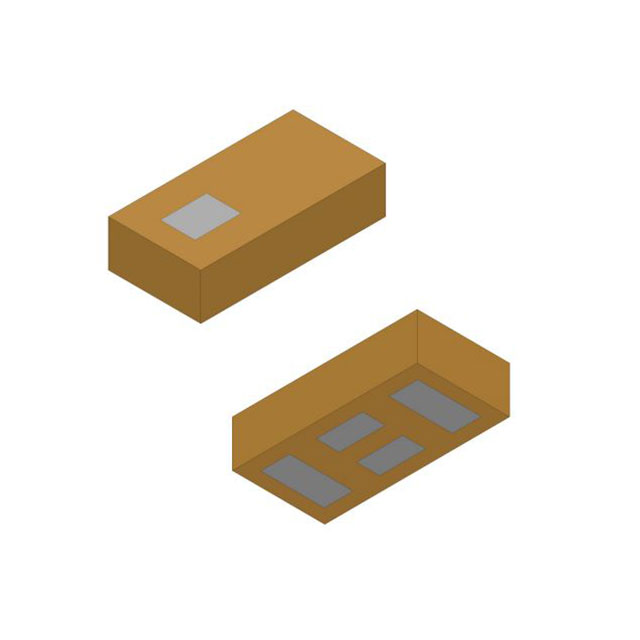

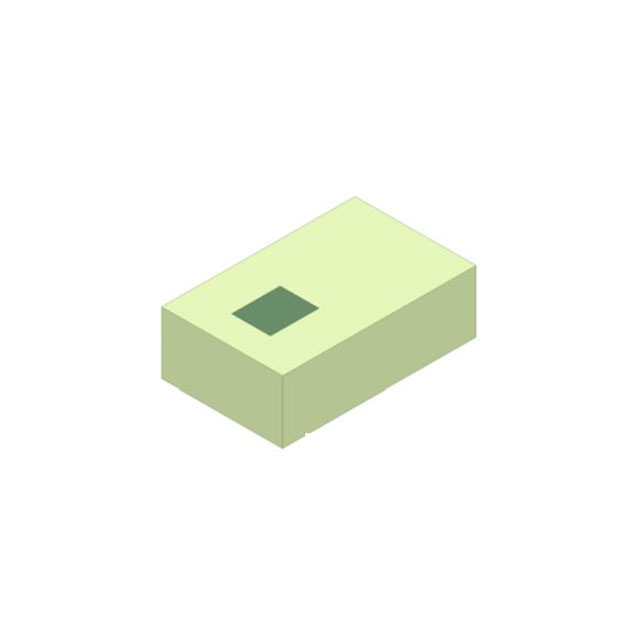

| Part Number | 4700BP07B0600001T | 4700BP14A0600001T | 4700BP14A0600001T | 4700BP15A0600001E |
| Manufacturer | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | N79 5G MINI BPF | 4.7GHZ BAND PASS FILTER, EIA 060 | 4.7GHZ BAND PASS FILTER, EIA 060 | 4.7GHZ BAND PASS FILTER, EIA 080 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
