476PUM016M
lmages are for reference only.476PUM016M
CAP ALUM 47UF 20% 16V RADIAL TH
DatasheetRadial, Can
89,154 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
47 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 5.644Ohm @ 120Hz 2000 Hrs @ 85°C
476PUM016M
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Cornell Dubilier Knowles |
| Series | PUM |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 5.644Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 65 mA @ 120 Hz |
| Ripple Current @ High Frequency | 97.5 mA @ 10 kHz |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Base Product Number | - |
| Impedance | - |
| Product Attribute | |
 |
 |
 |

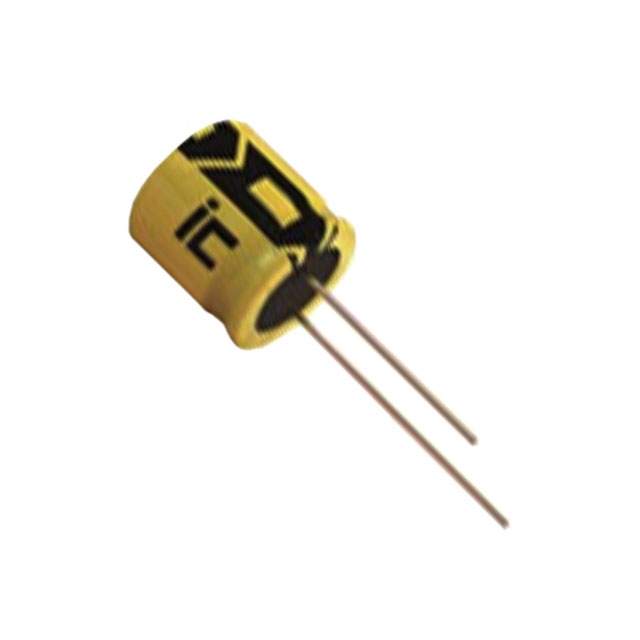

| Part Number | 476PGM016MSA | 476PUM025M | 25YXM100MEFR6.3X11 | 16PX100MEFCTA5X11 |
| Manufacturer | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Rubycon | Rubycon |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | ELECTROLYTIC/IC | CAP ALUM 47UF 20% 25V RADIAL TH | CAP ALUM 100UF 20% 25V RADIAL TH | CAP ALUM 100UF 20% 16V RADIAL TH |
| Series | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Rubycon | Rubycon |
| Packaging | Bulk | Bulk | Bulk | Cut Tape (CT)-->Tape & Box (TB) |
